ASME/ANSI B16.9, B16.28 Buttweld Stub End Manufacturers

Creative Piping, a leading supplier of industrial piping solutions, specializes in providing high-quality stub ends for various applications. Our stub ends are meticulously crafted to meet industry standards, ensuring optimal performance and durability. Whether you require stub ends for piping systems in the oil and gas, chemical, or construction sectors, We delivers reliable products tailored to your specifications. With a commitment to excellence and customer satisfaction, we strive to be your trusted partner in fulfilling all your piping needs.

A butt weld stub end is a type of pipe fitting used in piping systems to allow for easy installation, maintenance, and modification. It consists of a short length of pipe with one end that has a plain or beveled surface, and the other end that is flanged or welded to the adjoining pipe or fitting. The butt weld stub end is welded to the pipe or fitting by butt welding, creating a strong and leak-proof connection.

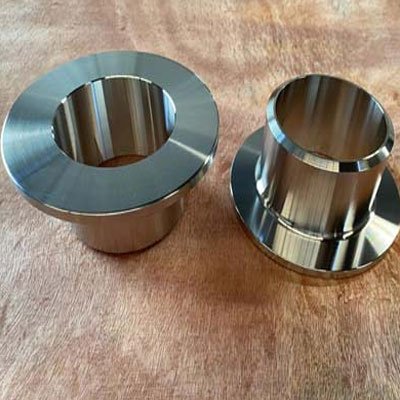

Buttweld Stub End Pipe Fittings

Are You Looking to Buy ASME B16.9 Stub End Pipe Fittings? Buttweld Long Stub End, Short Stub End Manufacturers & Suppliers in Sizes 1/2” NB TO 72” NB. Call Us for the Best Price.

Buttweld Long Stub End Specification

Dimensions 01

ASME/ANSI B16.9, B16.28, MSS-SP-43, BS4504, BS4504, BS10

Size range 02

Seamless Fittings: 1/2" - 24"

Welded Fittings: 4" - 72"

Applications 03

oil and gas, petrochemicals, power generation, and water treatment

Bending Radius 04

R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom

Type 05

Long Stub End, Short Stub End


Schedule 06

Schedule 5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 140, 160, XXS

ANSI/ASME B16.9 Buttweld Long Stub End

ANSI/ASME B16.9 Buttweld Long Stub End is a specific type of pipe fitting designed to facilitate the connection of pipes of different sizes or materials in a piping system. The standard specifies precise dimensions and tolerances for long stub ends to ensure compatibility and interchangeability with other fittings and pipes. These fittings are designed for butt welding, a common method for joining pipes and fittings in which the ends are aligned, heated, and then fused together to create a strong, leak-proof joint. ANSI/ASME B16.9 Buttweld Long Stub Ends are manufactured to withstand specific pressure ratings, depending on the material and size, ensuring the integrity and safety of the piping system.

Buttweld Long Stub End

ANSI/ASME B16.9 Buttweld Short Stub End

ANSI/ASME B16.9 Buttweld Short Stub End is a specific type of pipe fitting designed to facilitate the connection of pipes of different sizes or materials in a piping system. The short stub end shares similarities with its long counterpart but has a shorter length. It features a cylindrical shape with a reduced diameter at one end, which allows it to fit inside a corresponding pipe or fitting. The other end is typically welded to the larger diameter pipe, creating a smooth transition and ensuring a secure connection. This design enables easy disassembly and maintenance of the piping system without requiring extensive cutting or welding.

Buttweld Short Stub End

get a quote

Contact us

  Email

  Call Now

  Chat With Us

We produce various types of Butt weld Short and Long Stub End, from a range of materials like Carbon steel, Stainless Steel, Alloy Steel, Duplex & Super Duplex, and Nickel Alloys. know more about Dimensions, Weight Charts, Tolerance Chart, Sizes
Catalogue

Types of Buttweld Stub End

Buttweld Long Stub End

Buttweld Long Stub End

Buttweld Short Stub End

Buttweld Short Stub End


Creative Piping is the premier exporter and distributor of ASME/ANSI B16.9, B16.28, MSS-SP-43 Buttweld Stub End Pipe Fittings, serving markets across the USA, UAE, Saudi Arabia, Oman, and Qatar.

Why Choose CPS as Your Source for Short Stub End ?

  • Uncompromising Quality
  • Tailored Solutions
  • Proven Expertise
  • Reliable Delivery
  • Customer-Centric Approach
  • Trust and Transparency



Buttweld Pipe Fittings Manufacturing Process

We have a huge inventory of Butt Weld Stub End, Long stub end, Short stub end, ANSI/ASME B16.9 stub end, Butt weld stub end fittings, Stub end types, Pipe stub end , Welded stub end, HDPE stub end, PVC stub end, Industrial Stub Ends.

01 What is the difference between long & short stub ends?

The main difference between long and short stub ends is their length. Long stub ends have a longer length, while short stub ends have a shorter length. This difference in length can affect the overall dimensions and applications of the fittings.

Butt weld long and short stub ends are commonly used in various industries such as oil and gas, petrochemical, chemical processing, power generation, and more. They are used to connect pipes of different sizes or materials, create a smooth transition between pipes and fittings, and facilitate easy disassembly and maintenance of piping systems.

Yes, butt weld long and short stub ends are standardized according to industry standards such as ANSI/ASME B16.9, which specifies the dimensions, tolerances, materials, and testing requirements for butt weld fittings. These standards ensure compatibility, interchangeability, and quality consistency across different manufacturers.
