Copper Nickel 90/10 RTJ Flange, Orifice Flange, Plate Flange

Find top-notch ASTM B122 Copper Nickel 90/10 Square Flange, and Plate Flange at Best Prices.

Creative Piping is a leading manufacturer of copper nickel 90/10 flanges. Copper Nickel 90/10 flanges are pipe fittings made from an alloy consisting of 90% copper and 10% nickel. These flanges are well-regarded for their excellent corrosion resistance, particularly in marine and offshore environments, where they frequently come into contact with seawater. This makes them ideal for applications such as shipbuilding, desalination plants, and offshore oil and gas platforms.

Copper Nickel 90/10 flanges are manufactured to meet international standards such as ANSI, ASME, ASTM, and DIN, ensuring high quality and compatibility with other piping components. Copper Nickel 90/10 flanges are essential components in piping systems exposed to harsh, corrosive environments. Their durability, resistance to corrosion, and ease of installation make them a preferred choice in various industrial applications.

ASTM B122 Copper Nickel (UNS C70600, WNR 2.0872) Flanges Supplier in different forms like FF—Flat Face, RF—Raised Face, FM—Female Face, M—Male Face, T—Tongue Face, G—Groove Face, RJ—Ring Joint.

Cupro Nickel 90/10 Plate Flange Specification

Standards & Grades01

ASTM B122 / ASME SB122 - Cu-Ni 90/10

Size range 02

15mm ( 1/2" NPS ) up to 600mm ( 24" NPS ), For 2500# in sizes from NPS 1/2 to NPS 12

Pressure Rating 03

150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.

Dimensions 04

ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, BS, GOST, MSS SP-44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API-605, ASA, AWWA, Custom Drawings

Connection Type 05

Flat Face, Raised Face, RTJ, Lap Joint, Male and Female (M&F), Large and Small Tongue-and-Groove

MTC 06

EN 10204 3.2 and EN 10204 3.1, Test Certificates certifying NACE MR0175, NACE MR0103

get a quote

sales@creativeforged.com

Call Now

+91 70452 12326

Chat With Us

Click Here!

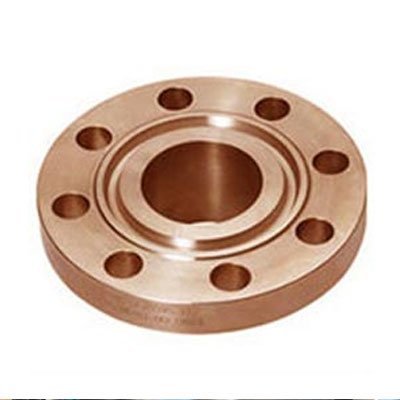

We Manufacture Cu-Ni 90/10 RTJ Flange upto 48″ with pressure rating class 150#, 300#, 600#, 900#, 1500#, 2500#. Common standards include ASTM B122, ASME SB122, ASME B16.5.

Immerse yourself in our vast selection of Cupro Nickel 90/10 industrial flanges, covering a broad spectrum of standards. Discover comprehensive specifications including dimensions, weight charts, tolerance charts, and sizes for various flange types such as Slip-on Flange, Long Weld Neck Flange, Orifice Flange, Threaded Flange, High Hub Blind Flange, Socket Weld Flange, Ring Spacer Flange, Paddle Blind Flange, Ring Type Joint Flange, Weldoflange, Nipoflange, Lap Joint Flange, Spectacle Blind Flange, and Tongue and Groove Flange.

Types of Copper Nickel 90/10 Flanges

Copper Nickel 90/10 Slip-on Flange

Copper Nickel 90/10 Weld Neck Flange

Copper Nickel 90/10 Blind Flange

Copper Nickel 90/10 Socket Weld Flange

Copper Nickel 90/10 Orifice Flange

Copper Nickel 90/10 RTJ Flange

Copper Nickel 90/10 Threaded Flange

Copper Nickel 90/10 Lap Joint Flange

Copper Nickel 90/10 Spectacle Blind Flange

Copper Nickel 90/10 Paddle Blind Flange

Copper Nickel 90/10 Ring Spacer Flange

Copper Nickel 90/10 Nipoflange

Copper Nickel 90/10 Weldoflange

Copper Nickel 90/10 Tongue & Groove Flange

As a Premier Distributor and Exporter, We Provide Cupro Nickel 90/10 Industrial Flange to the USA, UAE, Saudi Arabia, Oman, and Qatar, adhering to British, European, and American standards.

Copper Nickel 90/10 High Hub Blind Flange Equivalent Grades

STANDARD	UNS	WERKSTOFF NR.
Cupro Nickel 90/10	C70600	2.0872

Chemical Composition of Cu-Ni 90/10 Slip On Flange

Grade	Mn	Cu	Pb	Zn	Ni	Fe
Cu-Ni 90-10	1.0 Max	88.6 Min	.05 Max	1 Max	9-11 Max	1.8 Max

Mechanical Properties of Cupro Nickel 90/10 Weld Neck Flange

Element	Density	Tensile Strength	Melting Point	Elongation	Yield Strength (0.2%Offset)
Cupro Nickel 90-10	0.323 Lb/In3 At 68 F	50000 Psi	2260 F	30 %	20000 Psi

With grades such as Copper Nickel 90/10 Flanges offer a wide selection to meet the demands of various industrial environments. Cupro Nickel 90/10 Slip On Flanges are commercially pure Copper grades known for their exceptional corrosion resistance, while Cu-Ni 90/10 Plate Flange offer enhanced properties suitable for specific applications. These Copper Nickel 90/10 Orifice Flanges provide reliable solutions for industries such as chemical processing, oil and gas, marine, and aerospace, where corrosion resistance, durability, and reliability are critical requirements for safe and efficient operations.

01 What are Copper Nickel 90/10 flanges?

Copper Nickel 90/10 flanges are pipe fittings made from an alloy containing 90% copper and 10% nickel. They are used to connect pipes and components in piping systems, especially in corrosive environments like marine and offshore settings.

02What are the benefits of using Copper Nickel 90/10 flanges?

Corrosion Resistance: Excellent resistance to seawater and saline environments.
aDurability: High strength and toughness suitable for various pressure and temperature conditions.
Thermal Conductivity: Good thermal conductivity, ideal for heat exchangers.
Ease of Fabrication: Easy to fabricate and weld, providing design flexibility.

03What maintenance is required for Copper Nickel 90/10 flanges?

Minimal maintenance is needed due to their corrosion-resistant properties. Regular inspections for mechanical integrity and occasional cleaning to remove surface deposits are usually sufficient.

04 What standards do Copper Nickel 90/10 flanges comply with?

These flanges are manufactured to meet various international standards such as ANSI, ASME, ASTM, and DIN, ensuring high quality and compatibility with other piping components.

Copper Nickel 90/10 Flange Manufacturer
