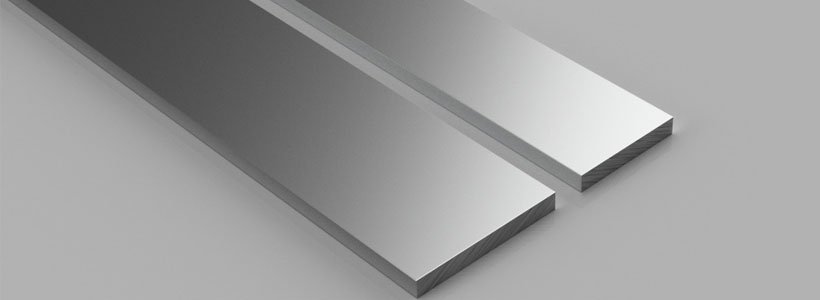

Flat Bar

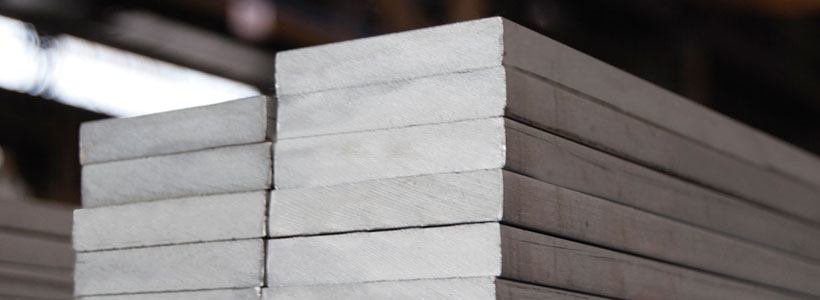

Stainless Steel Flat Bar

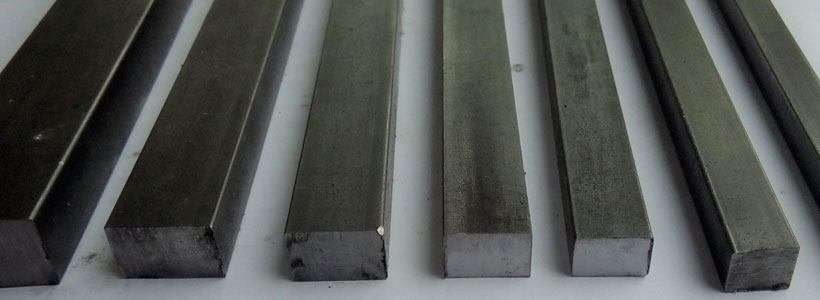

Mild Steel Flat Bar
As one of the India’s foremost Stainless Steel Manufacturers and Suppliers, Creative Piping Solutions Private Limited have been supplying superior quality Stainless Steel 304 & 316 Flat Bars to customers in the India and overseas for many years; fulfilling orders for businesses working within the automobile, construction and many other industries – all taking advantage of our superior products, wide range of services and competitive prices.
We carries a large selection of Flat Bars made from alloy steel, stainless steel, duplex and super duplex steel, nickel alloy steel, mild steel, aluminum, brass, and more. It is broadly used for industrial tools, structure construction, mechanical parts, ornamental fence construction, base plates, and more. We have flat bar available in a range of standard sizes as well as customized cut-to-fit service.
Stainless Steel Flat Bars:
ASTM A276, ASTM A484 SS 201, 202, 301, 302, 303, 304, 304H, 304L, 316, 316H, 316L, 309, 309S, 310, 310S, 316Ti, 317, 317L, 347, 321, 321H, 410, 416, 420, 430, 430F, 431, 440C, 630, 17-4PH, F51
Duplex & Super Duplex Steel Flat Bars:
ASTM / ASME SA276 UNS NO. S31803 , S32205 , S32550, S32750, S32760.
Nickel Alloy Steel Flat Bars:
Nickel 200, Nickel 201, Monel 400, Monel K500, Inconel 600, Inconel 625, Inconel 718, Incoloy 800, Incoloy 825, Hastelloy C276, Hastelloy C22, Hastelloy B2, Alloy 20, 904L, Titanium Gr.2, Gr.5, Cu-Ni 90/10 (C70600), Cu-Ni 70/30 (C71500)
| Dimensions | ASTM, ASME and API |
|---|---|
| Size | 3.17mm to 350mm dia |
| Thickness | 2mm~100mm |
| Finish | Bright, Polish & Black |
| Length | 4 to 6meters, or as customer’s requirements |
| Width | Thickness | Sectional weight | Length |
|---|---|---|---|
| up to 50 mm: ± 1 mm 50 mm to 75 mm: ± 1.5 mm 75 mm to 100 mm: ± 2 mm 100 mm and above ± 2% and maximum not exceding 6 mm |
up to 12 mm: ± 0.5 mm over 12 mm: 4% and max not exceeding 1.5 mm |
Up to 3 mm thick: +5/-3% Over 3 mm : ± 5% |
For fixed length : ± 100 mm |
| Size in mm | Average Weight | |
|---|---|---|
| KG/MTR | KG/FT | |
| 20 x 4 | 0.79 | 0.24 |
| 20 x 5 | 0.79 | 0.24 |
| 21 x 6 | 1.00 | 0.30 |
| 25 x 3 | 0.59 | 0.19 |
| 25 x 4 | 0.79 | 0.24 |
| 25 x 5 | 0.98 | 0.30 |
| 25 x 6 | 1.18 | 0.40 |
| 25 x 8 | 1.57 | 0.50 |
| 25 x 10 | 1.9 | 0.6 |
| 25 x 12 | 2.36 | 0.70 |
| 28 x 6 | 1.30 | 0.40 |
| 30 x 3 | 0.71 | 0.22 |
| 30 x 4.7 | 1.11 | 0.34 |
| 30 x 5 | 1.18 | 0.40 |
| 30 x 60 | 1.40 | 0.40 |
| 32 x 5 | 1.26 | 0.40 |
| 32 x 6 | 1.50 | 0.50 |
| 32 x 8 | 2 | 0.60 |
| 32 x 10 | 2.50 | 0.80 |
| 32 x 12 | 3 | 0.90 |
| 38 x 3 | 0.90 | 0.30 |
| 38 x 5 | 1.50 | 0.50 |
| 38 x 12 | 3.60 | 1.10 |
| 40 x 4 | 1.26 | 0.38 |
| 40 x 5 | 1.57 | 0.50 |
| 40 x 6 | 1.90 | 0.60 |
| 40 x 8 | 2.50 | 0.80 |
| 40 x 10 | 3.10 | 1.00 |
| 40 x 12 | 3.77 | 1.20 |
| 40 x 16 | 5.00 | 1.50 |
| 40 x 20 | 6.30 | 1.90 |
| 40 x 25 | 7.85 | 2.40 |
| 45 x 12 | 4.20 | 1.30 |
| 45 x 20 | 7.07 | 2.15 |
| 50 x 4 | 1.57 | 2.00 |
| 50 x 5 | 1.96 | 0.60 |
| 50 x 6 | 2.36 | 0.70 |
| 50 x 8 | 3.14 | 1.00 |
| 50 x 10 | 3.90 | 1.20 |
| 50 x 12 | 4.7 | 1.40 |
| 50 x 16 | 6.28 | 1.90 |
| 50 x 20 | 7.85 | 2.40 |
| 50 x 25 | 9.80 | 3.00 |
| 50 x 32 | 12.56 | 3.83 |
| 60 x 6 | 2.83 | 0.87 |
| 63 x 6 | 3 | 0.9 |
| 65 x 5 | 2.55 | 0.78 |
| 65 x 6 | 3.06 | 0.93 |
| 65 x 8 | 4.08 | 1.2 |
| 65 x 10 | 5.1 | 1.6 |
| 65 x 12 | 6.10 | 1.90 |
| 65 x 16 | 8.16 | 2.5 |
| 65 x 20 | 10.2 | 3.1 |
| 65 x 25 | 12.8 | 3.9 |
| 65 x 32 | 16.33 | 4.98 |
| 65 x 40 | 20.41 | 6.22 |
| 65 x 50 | 25.51 | 7.78 |
| 75 x 5 | 5.7 | 1.7 |
| 75 x 6 | 3.53 | 1.10 |
| 75 x 8 | 4.71 | 1.4 |
| 75 x 10 | 5.89 | 1.8 |
| 75 x 12 | 7.70 | 2.10 |
| 75 x 16 | 9.42 | 2.90 |
| 75 x 20 | 11.8 | 3.6 |
| 75 x 25 | 14.7 | 4.5 |
| 75 x 32 | 18.9 | 4.5 |
| 75 x 40 | 23.6 | 7.2 |
| 75 x 50 | 29.44 | 8.97 |
| 80 x 8 | 5.02 | 1.53 |
| 80 x 10 | 6.28 | 1.97 |
| 100 x 5 | 3.93 | 1.2 |
| 100 x 6 | 4.71 | 1.4 |
| 100 x 8 | 6.28 | 1.9 |
| 100 x 10 | 7.85 | 2.4 |
| 100 x 12 | 9.42 | 2.90 |
| 100 x 16 | 12.56 | 3.8 |
| 100 x 20 | 15.70 | 4.80 |
| 100 x 25 | 19.60 | 6.00 |
| 100 x 30 | 23.55 | 7.18 |
| 100 x 32 | 25.12 | 7.66 |
| 100 x 40 | 31.40 | 9.57 |
| 100 x 50 | 39.25 | 11.96 |
| 125 x 6 | 5.90 | 1.80 |
| 125 x 8 | 7.90 | 2.40 |
| 125 x 10 | 9.80 | 3.00 |
| 125 x 12 | 11.80 | 3.60 |
| 125 x 16 | 15.70 | 4.80 |
| 125 x 20 | 19.60 | 6.00 |
| 125 x 25 | 24.50 | 7.50 |
| 125 x 32 | 31.40 | 9.57 |
| 125 x 40 | 39.25 | 11.96 |
| 130 x 12 | 12.25 | 3.73 |
| 150 x 6 | 7.07 | 2.20 |
| 150 x 8 | 9.42 | 2.90 |
| 150 x 10 | 11.80 | 3.60 |
| 150 x 12 | 14.10 | 4.30 |
| 150 x 16 | 18.80 | 5.70 |
| 150 x 20 | 23.60 | 7.20 |
| 150 x 25 | 29.40 | 8.90 |
| 150 x 32 | 37.68 | 11.48 |
| 150 x 40 | 47.10 | 14.36 |
| 160 x 30 | 37.68 | 11.94 |
| 178 X 6 | 8.38 | 2.56 |
| 178 X 8 | 11.18 | 3.41 |
| 180 X 12 | 16.96 | 5.17 |
| 180 X 20 | 28.26 | 8.62 |
| 200 x 6 | 9.40 | 2.90 |
| 200 x 8 | 12.56 | 3.80 |
| 200 x 10 | 15.70 | 4.80 |
| 200 x 12 | 18.80 | 5.70 |
| 200 x 16 | 25.10 | 7.70 |
| 200 x 20 | 31.40 | 9.60 |
| 200 x 25 | 39.20 | 12 |
| 250 x 6 | 11.80 | 3.60 |
| 250 x 8 | 15.70 | 4.80 |
| 250 x 10 | 19.60 | 6.00 |
| 250 x 12 | 23.60 | 7.20 |
| 250 x 16 | 31.40 | 9.60 |
| 250 x 20 | 39.20 | 12.00 |
| 250 x 25 | 49.10 | 15.00 |
| 300 x 6 | 14.10 | 4.30 |
| 300 x 8 | 18.80 | 5.80 |
| 300 x 10 | 23.55 | 7.20 |
| 300 x 12 | 28.30 | 8.60 |
| 300 x 16 | 37.70 | 11.50 |
