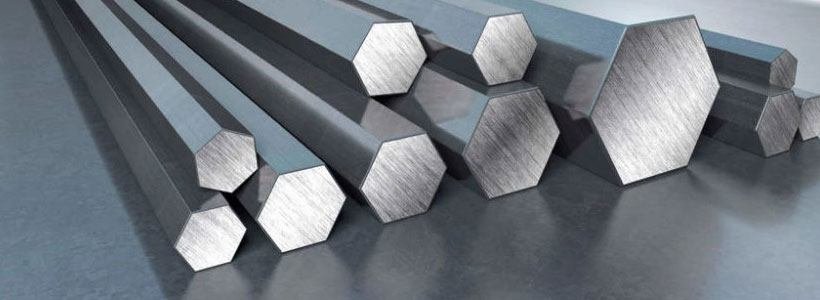

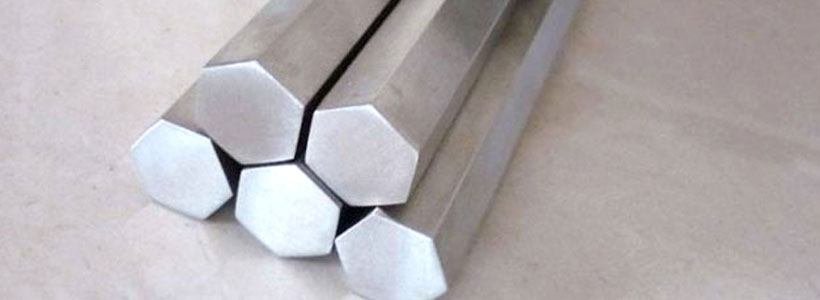

Steel Hex Bar
Hexagonal Bright Bar
Mild Steel Hex Bar
We at CREATIVE PIPING SOLUTIONS produce and supply a high-quality range of Stainless Steel Hex Bars. We manufacture corrosion resistance quality of Mild Steel Hexagonal Bars which make them suitable for various application. We Stock a wide range of Alloy Steel Hex Bar for various industrial and commercial applications.
We are leading manufacturers of Hexagon & Square Bars. Our products range from 5mm to 50 mm and conform to standards of ASTM A484, ISO h11 & k12. All these bars are highly machinable and suitable for component producing companies.
Stainless Steel Hexagonal bars have their end use in construction industries. With the possibility of tailor made sizes, it is used in the fabrication of H beams, I beams, C beams or any other major structural material.
Forged sound centers with 3-to-1 reduction. Available in “as forged” or mill surface finishes. No minimum buys on stocking grades. Flexibility on size/grade/specification/testing requirements. We can forge or machine product over your finish sizes to give you stock to allow cleanup
Stainless Steel Hex Bars:
ASTM A276, ASTM A484 SS 201, 202, 301, 302, 303, 304, 304H, 304L, 316, 316H, 316L, 309, 309S, 310, 310S, 316Ti, 317, 317L, 347, 321, 321H, 410, 416, 420, 430, 430F, 431, 440C, 630, 17-4PH, F51
Duplex & Super Duplex Steel Hex Bars:
ASTM / ASME SA276 UNS NO. S31803 , S32205 , S32550, S32750, S32760.
Nickel Alloy Hexagon Bars:
Nickel 200, Nickel 201, Monel 400, Monel K500, Inconel 600, Inconel 625, Inconel 718, Incoloy 800, Incoloy 825, Hastelloy C276, Hastelloy C22, Hastelloy B2, Alloy 20, 904L, Titanium Gr.2, Gr.5, Cu-Ni 90/10 (C70600), Cu-Ni 70/30 (C71500)
| Size range | 12 mm – 46 mm (1/2 inch- 1 ¾ inch) |
|---|---|
| Size Tolerances | h10 and h11 |
| Length | 2 metres – 6 metres |
| Chamfering | Available in 30 to 60 degree through fully automatic both-end chamfering machine (Only in Hexagon bars) |
| Crack Test | Magnetic Particle Inspection (MPI) |
| Ultrasonic Test | 100% tested through Digital Ultrasonic Flaw Detector, as per ASTM A-388, EN 10308 (class 1 to 4), API 6A/ISO 10423:2003-PSL 3, SEP 1920:1984 (class A, B,C), MIL STD 2154 |
| Length Tolerance | Available in special cut to length bars in tolerance –0/+10 mm (-0/+0.5 inch) |
| Surface Finish | Cold drawn condition and Belt polished condition |
| Heat Treatment | Solution Annealed, Annealed |
| Grades | AISI: 303, 304L, 316L, 316Ti, 321, 409, 410, 430F, 17-4 PH/630 DIN: 1.4305, 1,4307, 1.4404, 1.4571, 1.4541, 1.4006, 1.4104, 1.4016, 1.4542 |
| CG | Centreless ground | HF | Hot finished |
|---|---|---|---|
| CF | Cold finished | HRAP | Hot rolled annealed and pickled |
| CD | Cold drawn | P | Polished |
| BD | Bright drawn | SRE | Slit rolled edge |
| P&T | Peeled and turned | RT | Rough turned/peeled |
| ST | Smooth turned | PR | Peeled and reeled |
| Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
| Cold Drawn and Ground | 10.00 – 75.00 | 5/6″ – 2.50″ | h8-h9-h10-h11 |
| Peeled and Polished | 40.00 – 150.00 | 1.50″ – 6.00″ | h11, h11-DIN 1013 |
| Peeled and Ground | 20.00 – 50.00 | 3/4″ – 2.00″ | h9-h10-h11 |
| Cold Drawn and Polish | 3.00 – 75.00 | 1/8″ – 3.00″ | h8-h9-h10-h11 |
Steel Bars Standard lengths of 2000 mm up to 6000 mm. Cut to size on request (tolerance +2/-0 mm).
| 5.0 | 45.0 |
| 6.0 | 50.0 |
| 7.0 | 55.0 |
| 8.0 | 60.0 |
| 9.0 | 65.0 |
| 10.0 | 70.0 |
| 12.0 | 75.0 |
| 16.0 | 80.0 |
| 20.0 | 90.0 |
| 25.0 | 100.0 |
| 30.0 | 130.0 |
| 35.0 | 160.0 |
| 40.0 | 200.0 |
