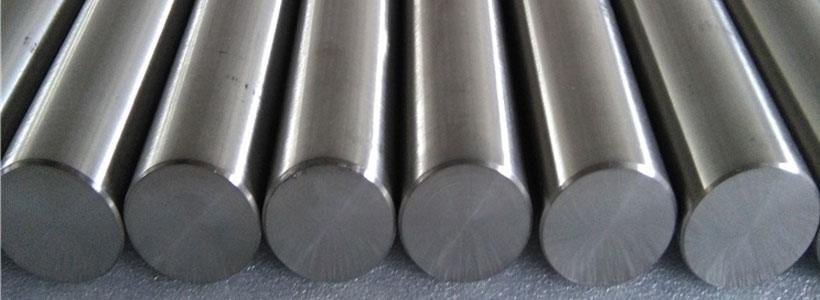

Stainless Steel 430 Round Bar
ASTM A276 430F SS Rod
Stainless Steel 430 Bars & Rods
Creative Piping Solutions Private Limited is specializing in offering a full line of 430 Stainless Steel Round Bars and Rods including SS 430F Bright Bars, Black Bars, and Square Bars. Our catalog consists of a 430 SS Rods Producer and SS 430F Bars Suppliers, serving across worldwide clientele with a very competitive market price. We are recognized as India’s top-notch suppliers and exporters of UNS S43020 Round Bars and Rods to meet all specific requirements of wide range industries. Our UNS S43000 Forged Bars, which has a low carbon content that provides it increased resistance to high temperatures, and finds applications in chemical machinery, evaporators, and food processing and cooling coils. Our AISI 430 and AISI 430F Bright Bars are resistant to carbide precipitation and can be fused to be used at high temperatures.
Mechanical test, chemical test, tensile test, intergranular corrosion test, PMI test, ultrasonic test, radiographic test, pitting corrosion test are performed in our quality inspection unit. Other tests are destructive- non-destructive test, flattening, micro-macro test, visual inspection test, and flaring test. Also, customers can demand any other tests as per their application requirements. Third-party qualification certificates are also provided along with a supply of 430 Flat, Square, Hex, and Round Bars.
We provide 403F SS Polished Bars in relevant packaging for 100% safe delivery. Also, these are coated with plastic film and shrink wrap it provides extra protection from oxidation. Mainly, these are packed in wooden boxes, cartons, cases, crates, and pallets or in the form of bundles with custom lengths. We Supply in Singapore, Bahrain, Kuwait, Iraq, Oman, Qatar, Saudi Arabia and the United Arab Emirates (UAE), etc. at Market Leading Prices.
Popular Product Searches on Creative:
Square Bars | Forged Round Bar | Steel Hex Bar | Polish Bar | Bright Round Bars | Black Round Bars
| Specifications | ASTM A276, ASME SA276 / ASTM A479 ASME SA479 |
| Product | 430 Round Bar |
| Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Size | 4mm to 500 mm |
| Length | 1 to 6 Meters, Custom Cut Length |
| From | Round, Square, Rectangle, Hex (A/F), Ingot, Billet, Forging Etc |
| Finish | Black, Rough Turned, Bright Polished, No 4 Finish, Matt Finish, BA Finish |
| Bright Bars Size | OD: 4mm to 100mm |
| Hex Bars Size | 18mm – 57mm (11/16″ to 2-3/4″) |
| Square Bars Size | 18mm – 47mm (11/16″ to 1-3/4″) |
| Flat Bars Size | 1/2” to 10” in thickness range of 2mm to 150mm |
| Angle bars Size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Section | 3.0 to 12.0mm thickness |
| Channel Bars Size | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Hollow Bar Size | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Billet Size | 1/2″ to 495mm Diameter |
| Rectangles Size | 33 x 30mm to 295 x 1066mm |
| Condition | Hardened & tempered, annealed |
| Surface | Cold Drawn, Bright, Sand Blasting Finished, Hot Rolled Pickled, Hairline, Polished |
| Price Terms | Ex-Works, FOB, CFR, CIF, CNF |
| Latest Price | Call +91 7045212326 |
| STANDARD | WERKSTOFF NR. | UNS | JIS | AFNOR | EN |
|---|---|---|---|---|---|
| SS 430 | 1.4016 | S43000 | SUS 430 | Z8C-17 | X6Cr17 |
| SS 430F | 1.4104 | S43020 | SUS 430F | Z13CF17 | – |
| 430 SS Polished Round Bar | Stainless Steel 430 T-Bar |
| WERKSTOFF NR. 1.4016 Square Bar | 430F SS Triangle Bar |
| ASME SA276 430 SS Flat Bar | ASME SA479 430 SS Hex Bar |
| 430 SS Hollow Bar | UNS S43000 Round Bar |
| 430F SS Precistion Ground Bar | ASTM A276 430 Threaded Bar |
| 430F SS AISI Rebar | JIS SUS 430 True Bar |
| 430 SS Cold Drawn Bar | 430F SS Hot Rolled Bar |
| ASTM A479 430 SS Rods | DIN 1.4016 Half Round Bar |
| EN X6Cr17 Polish / Bright Bar | AFNOR Z8C-17 Black Bar |
| DIN 1.4104 Angle Bar | 430F SS Forged Bar |
| Grade | C | Mn | Ph | Su | Si | Ch | Mo | Ni |
|---|---|---|---|---|---|---|---|---|
| SS 430 | 0.12 max | 1.00 max | 0.045 max | 0.030 max | 1.00 max | 16.0-18.0 | – | 0.50 max |
| SS 430F | 0.12 max | 1.25 max | 0.06 max | 0.15 min | 1.00 max | 16.0-18.0 | 0.60 max | – |
| Tensile Strength(Mpa)min | Yield Strength 0.2% Proof (Mpa) | Elongation (% in 50mm)min | Reduction in Area, % | Hardness, Brinell(HB) / Rockwell B |
|---|---|---|---|---|
| 552 | 379 | 25 | – | 262 |
| 483 | 310 | 22 | – | 85 max |
| Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
| Cold Drawn and Polish | 3.00 – 75.00 | 1/8″ – 3.00″ | h8-h9-h10-h11 |
| Cold Drawn and Ground | 10.00 – 75.00 | 5/6″ – 2.50″ | h8-h9-h10-h11 |
| Peeled and Polished | 40.00 – 150.00 | 1.50″ – 6.00″ | h11, h11-DIN 1013 |
| Peeled and Ground | 20.00 – 50.00 | 3/4″ – 2.00″ | h9-h10-h11 |
| Flat Bar | |||
|---|---|---|---|
| sizes in mm | Size (inch) | Thickness (mm) | Thickness (in Inches) |
| 22 | 7/8 | 17 & 18 | 2/3 – 5/7 |
| 25 | 1 | 5 to 20 | 3/16 – 4/5 |
| 30 | 1-3/16 | 5 to 20 | 3/16 – 4/5 |
| 32 | 1-1/4 | 6 to 20 | 1/4 – 4/5 |
| 35 | 1-3/8 | 5 to 20 | 3/16 – 3/16 |
| 40 | 1-4/7 | 5 to 25 | 3/16 – 1 |
| 45 | 1-7/9 | 5 to 25 | 3/16 – 1 |
| 47 | 1-6/7 | 17,25 & 32 | 2/3, 1 & 1-1/4 |
| 50 | 2 | 5 to 32 | 3/16 – 1-1/4 |
| 55 | 2-1/16 | 5 to 25 | 3/16 – 1 |
| 57 | 2-1/4 | 32 | 1-1/4 |
| 60 | 2-3/8 | 5 to 35 | 3/16 – 1-3/8 |
| 63 | 2-1/2 | 10 to 30 | 3/8 – 1-3/16 |
| 65 | 2-5/9 | 10 to 30 & 35 | 3/8 – 1-3/16, & 1-3/8 |
| 70 | 2-3/4 | 6 to 25 & 40 | 1/4 – 1, & 1-4/7 |
| 75 | 3 | 8 to 25 | 5/16 – 1 |
| 80 | 3-1/8 | 8 to 20 | 5/16 – 4/5 |
| 90 | 3-1/2 | 8 to 20 | 5/16- 4/5 |
| 100 | 4 | 8, 10, 12 | 5/16, 3/8, 1/2 |
| Square bar – metric sizes and weights | ||
|---|---|---|
| Square bar Size | KG’s per Metre | Standard Length (metres) |
| 10 x 10 | 0.81 | 6.0 |
| 12 x 12 | 1.16 | 6.0 |
| 16 x 16 | 2.06 | 6.0 |
| 20 x 20 | 3.22 | 6.0 |
| 25 x 25 | 5.03 | 6.0 |
| 32 x 32 | 8.24 | 6.0 |
| 40 x 40 | 12.8 | 6.0 |
| 50 x 50 | 20.12 | 6.0 |
| Documents like QAP | Packaging list |
| NABL approved lab test report | Guarantee letter |
| Buyers report | Third-party test report |
| Raw material test report | Material Traceability report |
| Commercial invoice to buyers | The TC like MTC as per EN 10204/3.1B |
Creative Piping Solutions Private Limited is focusing on every procedure to assure quality. AISI SS 430F Bars are subject to surface wash and cleaning to remove all impurities. After that bars and rods are wrapped in thin plastic. Then an outer rope is tied to protect the Stainless Steel Grade 430 Bar and they are packed in a container or wooden box.
