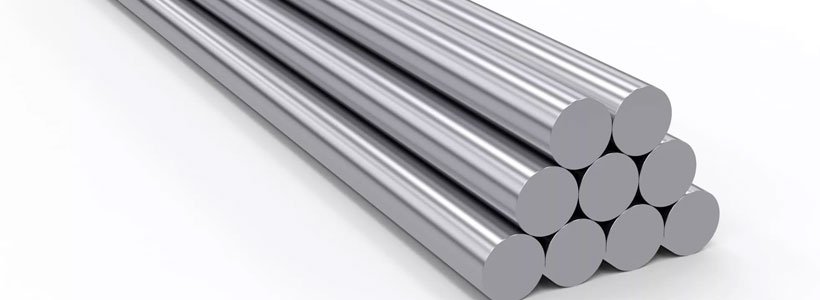

Stainless Steel 420 Round Bar

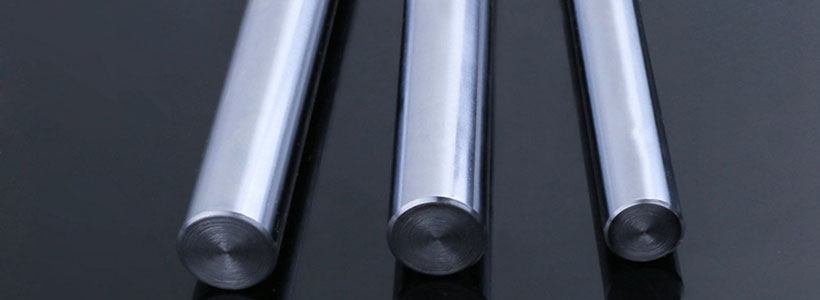

ASTM A276 420 SS Rod
Stainless Steel 420 Bars & Rods
Creative Piping Solutions Private Limited is a globally know manufacturers and suppliers of high-performance SS 420 Round Bars and Rods, Having one of India’s largest inventories of Round and Square Bars in different designation, standards, specifications, and dimensions. One can order these UNS S42000 Bright Bars in different shapes such as billet, square, hex, round, rectangle, Flat, Tee, Hollow, etc. and product dispatch from the same day from our facility. Through the years of experience and knowledge team in the production line, our company has amassed a unique set of technical knowledge. The SS 420 is magnetic and non-magnetic in nature also it comes in austenitic states. We provide Stainless Steel 420 Forged Round Bar with tolerance and machining allowance for multi-purpose applications. Refined makes these bight round bars more resistive towards corrosion and abrasion. Furthermore, these provide excellent performance in terms of high heat. SS hex bar is driven out from both cold and hot working process.
As SS 420 Bars Suppliers and Exporters, we perform quality checks, with the help of a team of highly qualified professionals and skilled workforce. We design, fabricate, and produce AISI 420 SS Bright Bars and Forged Bars that have greater strengths which enables it to be used at high temperatures. These products are frequently demanded by our customers based in Singapore, Bahrain, Kuwait, Iraq, Oman, Qatar, Saudi Arabia, and the United Arab Emirates (UAE). We provide all size 420 SS Bars and Rods at industrial leading prices with a NACE 3.1 Certification, Mill Test Certification, and all necessary documents.
Popular Product Searches on Creative:
Square Bars | Forged Round Bar | Steel Hex Bar | Polish Bar | Bright Round Bars | Black Round Bars
| Specifications | ASTM A276, ASME SA276 / ASTM A479 ASME SA479 |
| Product | 420 Round Bar |
| Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Size | 4mm to 500 mm |
| Length | 1 to 6 Meters, Custom Cut Length |
| From | Round, Square, Rectangle, Hex (A/F), Ingot, Billet, Forging Etc |
| Finish | Black, Rough Turned, Bright Polished, No 4 Finish, Matt Finish, BA Finish |
| Bright Bars Size | OD: 4mm to 100mm |
| Hex Bars Size | 18mm – 57mm (11/16″ to 2-3/4″) |
| Square Bars Size | 18mm – 47mm (11/16″ to 1-3/4″) |
| Flat Bars Size | 1/2” to 10” in thickness range of 2mm to 150mm |
| Angle bars Size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Section | 3.0 to 12.0mm thickness |
| Channel Bars Size | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Hollow Bar Size | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Billet Size | 1/2″ to 495mm Diameter |
| Rectangles Size | 33 x 30mm to 295 x 1066mm |
| Condition | Hardened & tempered, annealed |
| Surface | Cold Drawn, Bright, Sand Blasting Finished, Hot Rolled Pickled, Hairline, Polished |
| Price Terms | Ex-Works, FOB, CFR, CIF, CNF |
| Latest Price | Call +91 7045212326 |
| 420 SS Polished Round Bar | Stainless Steel 420 T-Bar |
| WERKSTOFF NR. 1.4021 Square Bar | 420 SS Triangle Bar |
| ASME SA276 420 SS Flat Bar | ASME SA479 420 SS Hex Bar |
| 420 SS Hollow Bar | UNS S42000 Round Bar |
| 420 SS Precistion Ground Bar | ASTM A276 420 Threaded Bar |
| 420 SS AISI Rebar | JIS SUS 420 True Bar |
| 420 SS Cold Drawn Bar | 420 SS Hot Rolled Bar |
| ASTM A479 420 SS Rods | DIN 1.4021 Half Round Bar |
| 420 SS Polish / Bright Bar | 420 Stainless Steel Black Bar |
| AISI Stainless Steel 420 Angle Bar | AISI Stainless Steel 420 Forged Bar |
| Grade | C | Si | Ni | S | Mn | P | Cr | |
|---|---|---|---|---|---|---|---|---|
| SS 420 | min. | 0.15 | – | – | – | – | – | 12.0 |
| max. | 0.36 | 1.00 | 1.00 | 0.03 | 1.00 | 0.04 | 14.0 | |
| Grade | Tensile Strength (MPa) min | Elongation (% in 50mm) min | Yield Strength 0.2% Proof (MPa) min | Hardness | |
|---|---|---|---|---|---|
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| SS 420 | 700 | 30 | 495 | 255 | 277 |
| Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
| Cold Drawn and Polish | 3.00 – 75.00 | 1/8″ – 3.00″ | h8-h9-h10-h11 |
| Cold Drawn and Ground | 10.00 – 75.00 | 5/6″ – 2.50″ | h8-h9-h10-h11 |
| Peeled and Polished | 40.00 – 150.00 | 1.50″ – 6.00″ | h11, h11-DIN 1013 |
| Peeled and Ground | 20.00 – 50.00 | 3/4″ – 2.00″ | h9-h10-h11 |
| Flat Bar | |||
|---|---|---|---|
| sizes in mm | Size (inch) | Thickness (mm) | Thickness (in Inches) |
| 22 | 7/8 | 17 & 18 | 2/3 – 5/7 |
| 25 | 1 | 5 to 20 | 3/16 – 4/5 |
| 30 | 1-3/16 | 5 to 20 | 3/16 – 4/5 |
| 32 | 1-1/4 | 6 to 20 | 1/4 – 4/5 |
| 35 | 1-3/8 | 5 to 20 | 3/16 – 3/16 |
| 40 | 1-4/7 | 5 to 25 | 3/16 – 1 |
| 45 | 1-7/9 | 5 to 25 | 3/16 – 1 |
| 47 | 1-6/7 | 17,25 & 32 | 2/3, 1 & 1-1/4 |
| 50 | 2 | 5 to 32 | 3/16 – 1-1/4 |
| 55 | 2-1/16 | 5 to 25 | 3/16 – 1 |
| 57 | 2-1/4 | 32 | 1-1/4 |
| 60 | 2-3/8 | 5 to 35 | 3/16 – 1-3/8 |
| 63 | 2-1/2 | 10 to 30 | 3/8 – 1-3/16 |
| 65 | 2-5/9 | 10 to 30 & 35 | 3/8 – 1-3/16, & 1-3/8 |
| 70 | 2-3/4 | 6 to 25 & 40 | 1/4 – 1, & 1-4/7 |
| 75 | 3 | 8 to 25 | 5/16 – 1 |
| 80 | 3-1/8 | 8 to 20 | 5/16 – 4/5 |
| 90 | 3-1/2 | 8 to 20 | 5/16- 4/5 |
| 100 | 4 | 8, 10, 12 | 5/16, 3/8, 1/2 |
| Square bar – metric sizes and weights | ||
|---|---|---|
| Square bar Size | KG’s per Metre | Standard Length (metres) |
| 10 x 10 | 0.81 | 6.0 |
| 12 x 12 | 1.16 | 6.0 |
| 16 x 16 | 2.06 | 6.0 |
| 20 x 20 | 3.22 | 6.0 |
| 25 x 25 | 5.03 | 6.0 |
| 32 x 32 | 8.24 | 6.0 |
| 40 x 40 | 12.8 | 6.0 |
| 50 x 50 | 20.12 | 6.0 |
| Documents like QAP | Packaging list |
| NABL approved lab test report | Guarantee letter |
| Buyers report | Third-party test report |
| Raw material test report | Material Traceability report |
| Commercial invoice to buyers | The TC like MTC as per EN 10204/3.1B |
Creative Piping Solutions Private Limited is focusing on every procedure to assure quality. AISI SS 420 Bars are subject to surface wash and cleaning to remove all impurities. After that bars and rods are wrapped in thin plastic. Then an outer rope is tied to protect the Stainless Steel Grade 420 Bar and they are packed in a container or wooden box.
Afghanistan, Albania, Algeria, Armenia, Australia, Austria, Azerbaijan, Bahrain, Bangladesh, Belgium, Bhutan, Brazil, Bulgaria, Cameroon, Canada, Chile, Colombia, Congo, Costa Rica, Denmark, Egypt, Finland, France, Georgia, Germany, Ghana, Greece, Greenland, Haiti, Hong Kong, Iceland, India, Indonesia, Iran, Iraq, Ireland, Israel, Italy, Jamaica, Japan, Jordan, Kazakhstan, Korea, Kuwait, Lebanon, Macao, Malaysia, Mexico, Monaco, Myanmar, Nepal, Netherlands, New Zealand, Nigeria, Norway, Oman, Peru, Philippines, Poland, Portugal, Qatar, Romania, Saudi Arabia, Serbia, Singapore, Slovakia, South Africa, Spain, Sri Lanka, Sweden, Switzerland, Tanzania, Thailand, Tunisia, Turkey, Turkmenistan, Uganda, Ukraine, UAE, United Kingdom, USA, Uzbekistan, Viet Nam, Yemen.
Worldwide Exporters of Steel Bars and Rods | Singapore, Bahrain, Kuwait, Iraq, Oman, Qatar, Saudi Arabia, UAE.
