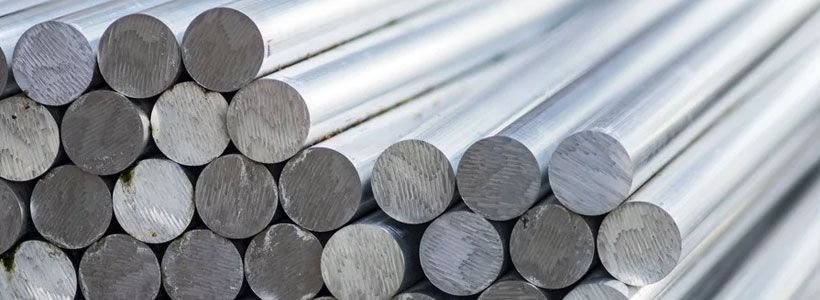

Stainless Steel 416 Round Bar

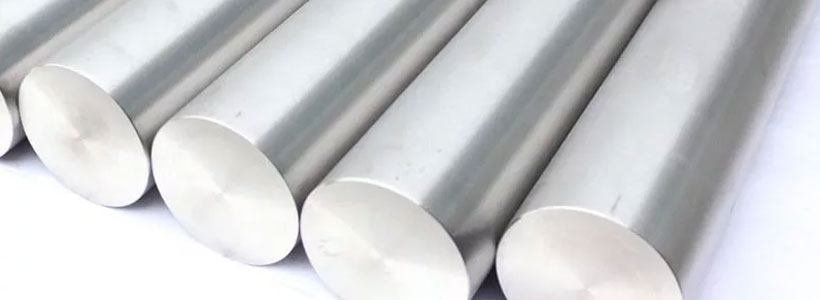

ASTM A276 416 SS Rod
Stainless Steel 416 Bars & Rods
The principal activity of CPS tubes in the manufacturing and supplying of high tensile 416 Stainless Steel Round Bars and Rods in India. Our manufacturing plants are equipped with the latest modern machinery and tools to produce flat and square bars in bulk quantity. We use computerized machines to fabricate precision quality 416 SS hex bars. Our standardized inventory consists of Bright, black, forged, Hot Rolled, Cold Drawn Bars in various standards, dimensions, specifications, and customize lengths as per the urgent demands of the customers. The finished round and threaded bars produced by us conform to those required by customers as well as the national and international standards.
UNS S41600 Round Bar is processed from selected raw materials using the advanced machines. These are cold or hot worked for strengthening it more. SATIN and bright black polish prevent rusting and oxidation even in the uncoated area. We deliver BS 416S21 Bars and Rods in industrial standard packing so the not a single product gets any damage while transporting from warehouse to client location. One can choose crates, wooden boxes, cartons, cases, pallets, and cut size length bright bar. Shrinkwrap or plastic wrap prevents rusting or corrosion while transits to clients globally.
With many years of industrial experience in the steel market and ISO certified suppliers and exporters we are providing highest quality bars in different shapes like Hex, Round, Flat, Square, Tee, Hollow, True, and Bright Bars to the countries: Iraq, Oman, Qatar, Bahrain, Kuwait, Saudi Arabia, Singapore, and the United Arab Emirates (UAE) at market leading prices.
Popular Product Searches on Creative:
Square Bars | Forged Round Bar | Steel Hex Bar | Polish Bar | Bright Round Bars | Black Round Bars
| Specifications | ASTM A276, ASME SA276 / ASTM A479 ASME SA479 |
| Product | 416 Round Bar |
| Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Size | 4mm to 500 mm |
| Length | 1 to 6 Meters, Custom Cut Length |
| From | Round, Square, Rectangle, Hex (A/F), Ingot, Billet, Forging Etc |
| Finish | Black, Rough Turned, Bright Polished, No 4 Finish, Matt Finish, BA Finish |
| Bright Bars Size | OD: 4mm to 100mm |
| Hex Bars Size | 18mm – 57mm (11/16″ to 2-3/4″) |
| Square Bars Size | 18mm – 47mm (11/16″ to 1-3/4″) |
| Flat Bars Size | 1/2” to 10” in thickness range of 2mm to 150mm |
| Angle bars Size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Section | 3.0 to 12.0mm thickness |
| Channel Bars Size | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Hollow Bar Size | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Billet Size | 1/2″ to 495mm Diameter |
| Rectangles Size | 33 x 30mm to 295 x 1066mm |
| Condition | Hardened & tempered, annealed |
| Surface | Cold Drawn, Bright, Sand Blasting Finished, Hot Rolled Pickled, Hairline, Polished |
| Price Terms | Ex-Works, FOB, CFR, CIF, CNF |
| Latest Price | Call +91 7045212326 |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | AFNOR | EN |
|---|---|---|---|---|---|---|
| SS 416 | 1.4005 | S41600 | SUS 416 | 416S21 | – | X12CrS13 |
| 416 SS Polished Round Bar | Stainless Steel 416 T-Bar |
| WERKSTOFF NR. 1.4005 Square Bar | 416 SS Triangle Bar |
| ASME SA276 416 SS Flat Bar | ASME SA479 416 SS Hex Bar |
| 416 SS Hollow Bar | UNS S41600 Round Bar |
| 416 SS Precistion Ground Bar | ASTM A276 416 Threaded Bar |
| 416 SS AISI Rebar | JIS SUS 416 True Bar |
| 416 SS Cold Drawn Bar | 416 SS Hot Rolled Bar |
| ASTM A479 416 SS Rods | DIN 1.4005 Half Round Bar |
| EN X12CrS13 Polish / Bright Bar | 416 Stainless Steel Black Bar |
| BS 416S21 Angle Bar | Stainless Steel 416 Forged Bar |
| Grade | C | Mn | Si | P | S | Cr | Mo |
|---|---|---|---|---|---|---|---|
| SS 416 | 0.15 max | 1.25 max | 1 max | 0.06 max | 0.15 min | 12 – 14 | 0.6 max |
| Grade | Tensile Strength (MPa) min | Elongation (% in 50mm) min | Yield Strength 0.2% Proof (MPa) min | Hardness | |
|---|---|---|---|---|---|
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| SS 416 | 517 | 30 | 275 | 262 | – |
| Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
| Cold Drawn and Polish | 3.00 – 75.00 | 1/8″ – 3.00″ | h8-h9-h10-h11 |
| Cold Drawn and Ground | 10.00 – 75.00 | 5/6″ – 2.50″ | h8-h9-h10-h11 |
| Peeled and Polished | 40.00 – 150.00 | 1.50″ – 6.00″ | h11, h11-DIN 1013 |
| Peeled and Ground | 20.00 – 50.00 | 3/4″ – 2.00″ | h9-h10-h11 |
| Flat Bar | |||
|---|---|---|---|
| sizes in mm | Size (inch) | Thickness (mm) | Thickness (in Inches) |
| 22 | 7/8 | 17 & 18 | 2/3 – 5/7 |
| 25 | 1 | 5 to 20 | 3/16 – 4/5 |
| 30 | 1-3/16 | 5 to 20 | 3/16 – 4/5 |
| 32 | 1-1/4 | 6 to 20 | 1/4 – 4/5 |
| 35 | 1-3/8 | 5 to 20 | 3/16 – 3/16 |
| 40 | 1-4/7 | 5 to 25 | 3/16 – 1 |
| 45 | 1-7/9 | 5 to 25 | 3/16 – 1 |
| 47 | 1-6/7 | 17,25 & 32 | 2/3, 1 & 1-1/4 |
| 50 | 2 | 5 to 32 | 3/16 – 1-1/4 |
| 55 | 2-1/16 | 5 to 25 | 3/16 – 1 |
| 57 | 2-1/4 | 32 | 1-1/4 |
| 60 | 2-3/8 | 5 to 35 | 3/16 – 1-3/8 |
| 63 | 2-1/2 | 10 to 30 | 3/8 – 1-3/16 |
| 65 | 2-5/9 | 10 to 30 & 35 | 3/8 – 1-3/16, & 1-3/8 |
| 70 | 2-3/4 | 6 to 25 & 40 | 1/4 – 1, & 1-4/7 |
| 75 | 3 | 8 to 25 | 5/16 – 1 |
| 80 | 3-1/8 | 8 to 20 | 5/16 – 4/5 |
| 90 | 3-1/2 | 8 to 20 | 5/16- 4/5 |
| 100 | 4 | 8, 10, 12 | 5/16, 3/8, 1/2 |
| Square bar – metric sizes and weights | ||
|---|---|---|
| Square bar Size | KG’s per Metre | Standard Length (metres) |
| 10 x 10 | 0.81 | 6.0 |
| 12 x 12 | 1.16 | 6.0 |
| 16 x 16 | 2.06 | 6.0 |
| 20 x 20 | 3.22 | 6.0 |
| 25 x 25 | 5.03 | 6.0 |
| 32 x 32 | 8.24 | 6.0 |
| 40 x 40 | 12.8 | 6.0 |
| 50 x 50 | 20.12 | 6.0 |
| Documents like QAP | Packaging list |
| NABL approved lab test report | Guarantee letter |
| Buyers report | Third-party test report |
| Raw material test report | Material Traceability report |
| Commercial invoice to buyers | The TC like MTC as per EN 10204/3.1B |
Creative Piping Solutions Private Limited is focusing on every procedure to assure quality. AISI SS 416 Bars are subject to surface wash and cleaning to remove all impurities. After that bars and rods are wrapped in thin plastic. Then an outer rope is tied to protect the Stainless Steel Grade 416 Bar and they are packed in a container or wooden box.
