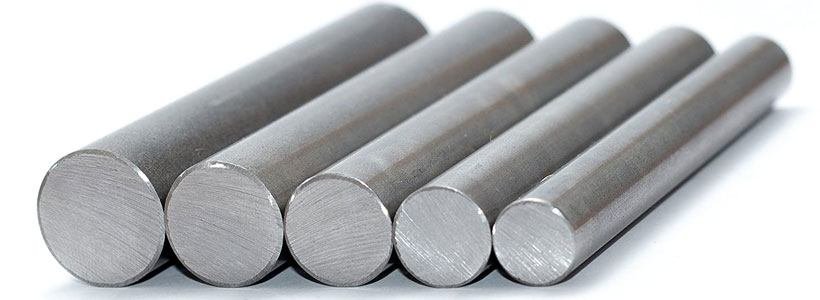

Stainless Steel 316 Round Bar
ASTM A276 316L SS Rod
Stainless Steel 316 Bars & Rods
Creative Piping Solutions Private Limited have ready stock of SS 316 and 316L Flat and Round Bar. We are one of the pioneer Manufacturers of SS 316L Bright Round Bars, where the passive layer on stainless steel can be attacked by certain chemical species. In normal atmospheric or water-based environments, AISI 316 and 316L Round Bars and Rods will not corrode as demonstrated by cutlery, domestic sink units, saucepans and work – surfaces. It is the standard molybdenum-bearing grade, second in importance to 304 amongst the austenitic stainless steels. The molybdenum gives 316 / 316L better overall corrosion resistant properties than Grade 304, particularly higher resistance to pitting and crevice corrosion in chloride environments. UNS S31600 has excellent forming and welding characteristics. Grade 316L, the low carbon version of 316 and is immune from sensitization (grain boundary carbide precipitation). Thus it is extensively used in heavy gauge welded components (over about 6mm). The austenitic structure also gives 316 SS Square and Hex Bars excellent toughness, even down to cryogenic temperatures.
316 and 316L Round Bars Features
We are one of the noteworthy Suppliers and Exporters of 316 & 316L SS Square, Flat, Hex, Round Bars and Rods in Singapore, Bahrain, Kuwait, Iraq, Oman, Qatar, Saudi Arabia and the United Arab Emirates (UAE) at market leading prices. You can email us any specific demands you have, our experts would be glad to assist you regarding the same.
Popular Product Searches on Creative:
Square Bars | Forged Round Bar | Steel Hex Bar | Polish Bar | Bright Round Bars | Black Round Bars
| Specifications | ASTM A276, ASME SA276 / ASTM A479 ASME SA479 |
| Product | 316/316L Round Bar |
| Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Size | 4mm to 500 mm |
| Length | 1 to 6 Meters, Custom Cut Length |
| From | Round, Square, Rectangle, Hex (A/F), Ingot, Billet, Forging Etc |
| Finish | Black, Rough Turned, Bright Polished, No 4 Finish, Matt Finish, BA Finish |
| Bright Bars Size | OD: 4mm to 100mm |
| Hex Bars Size | 18mm – 57mm (11/16″ to 2-3/4″) |
| Square Bars Size | 18mm – 47mm (11/16″ to 1-3/4″) |
| Flat Bars Size | 1/2” to 10” in thickness range of 2mm to 150mm |
| Angle bars Size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Section | 3.0 to 12.0mm thickness |
| Channel Bars Size | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Hollow Bar Size | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Billet Size | 1/2″ to 495mm Diameter |
| Rectangles Size | 33 x 30mm to 295 x 1066mm |
| Condition | Hardened & tempered, annealed |
| Surface | Cold Drawn, Bright, Sand Blasting Finished, Hot Rolled Pickled, Hairline, Polished |
| Price Terms | Ex-Works, FOB, CFR, CIF, CNF |
| Latest Price | Call +91 7045212326 |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
|---|---|---|---|---|---|---|---|
| SS 316 | 1.4401 / 1.4436 | S31600 | SUS 316 | 316S31 / 316S33 | – | Z7CND17‐11‐02 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
| SS 316L | 1.4404 / 1.4435 | S31603 | SUS 316L | 316S11 / 316S13 | 03Ch17N14M3 / 03Ch17N14M2 | Z3CND17‐11‐02 / Z3CND18‐14‐03 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
| 316 SS Polished Round Bar | Stainless Steel 316 T-Bar |
| WERKSTOFF NR. 1.4401 / 1.4436 Square Bar | DIN 1.4404 / 1.4435 Triangle Bar |
| ASME SA276 316 SS Flat Bar | ASME SA479 316 SS Hex Bar |
| 316 SS Hollow Bar | UNS S31603 Round Bar |
| 316 SS Precistion Ground Bar | ASTM A276 316 Threaded Bar |
| 316 SS AISI Rebar | JIS SUS 316 True Bar |
| 316 SS Cold Drawn Bar | 316 SS Hot Rolled Bar |
| ASTM A479 316 SS Rods | DIN 1.4401 Half Round Bar |
| EN X2CrNiMo17-12-2 / X2CrNiMo18-14-3 Polish / Bright Bar | AFNOR Z7CND17‐11‐02 Black Bar |
| BS 316S31 / 316S33 Angle Bar | GOST 03Ch17N14M2 Forged Bar |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
|---|---|---|---|---|---|---|---|---|---|
| SS 316 | 0.015 max | 2 max | 1.0 max | 0.045 max | 0.030 max | 16.0-18.0 | 2.0-3.0 | 11.0-14.0 | 67.845 min |
|
SS 316L 0.035 max |
2 max |
1.0 max |
0.045 max |
0.030 max |
16.0-18.0 |
2.0-3.0 |
10.0-14.0 |
68.89 min |
|
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
| Cold Drawn and Polish | 3.00 – 75.00 | 1/8″ – 3.00″ | h8-h9-h10-h11 |
| Cold Drawn and Ground | 10.00 – 75.00 | 5/6″ – 2.50″ | h8-h9-h10-h11 |
| Peeled and Polished | 40.00 – 150.00 | 1.50″ – 6.00″ | h11, h11-DIN 1013 |
| Peeled and Ground | 20.00 – 50.00 | 3/4″ – 2.00″ | h9-h10-h11 |
| Flat Bar | |||
|---|---|---|---|
| sizes in mm | Size (inch) | Thickness (mm) | Thickness (in Inches) |
| 22 | 7/8 | 17 & 18 | 2/3 – 5/7 |
| 25 | 1 | 5 to 20 | 3/16 – 4/5 |
| 30 | 1-3/16 | 5 to 20 | 3/16 – 4/5 |
| 32 | 1-1/4 | 6 to 20 | 1/4 – 4/5 |
| 35 | 1-3/8 | 5 to 20 | 3/16 – 3/16 |
| 40 | 1-4/7 | 5 to 25 | 3/16 – 1 |
| 45 | 1-7/9 | 5 to 25 | 3/16 – 1 |
| 47 | 1-6/7 | 17,25 & 32 | 2/3, 1 & 1-1/4 |
| 50 | 2 | 5 to 32 | 3/16 – 1-1/4 |
| 55 | 2-1/16 | 5 to 25 | 3/16 – 1 |
| 57 | 2-1/4 | 32 | 1-1/4 |
| 60 | 2-3/8 | 5 to 35 | 3/16 – 1-3/8 |
| 63 | 2-1/2 | 10 to 30 | 3/8 – 1-3/16 |
| 65 | 2-5/9 | 10 to 30 & 35 | 3/8 – 1-3/16, & 1-3/8 |
| 70 | 2-3/4 | 6 to 25 & 40 | 1/4 – 1, & 1-4/7 |
| 75 | 3 | 8 to 25 | 5/16 – 1 |
| 80 | 3-1/8 | 8 to 20 | 5/16 – 4/5 |
| 90 | 3-1/2 | 8 to 20 | 5/16- 4/5 |
| 100 | 4 | 8, 10, 12 | 5/16, 3/8, 1/2 |
| Square bar – metric sizes and weights | ||
|---|---|---|
| Square bar Size | KG’s per Metre | Standard Length (metres) |
| 10 x 10 | 0.81 | 6.0 |
| 12 x 12 | 1.16 | 6.0 |
| 16 x 16 | 2.06 | 6.0 |
| 20 x 20 | 3.22 | 6.0 |
| 25 x 25 | 5.03 | 6.0 |
| 32 x 32 | 8.24 | 6.0 |
| 40 x 40 | 12.8 | 6.0 |
| 50 x 50 | 20.12 | 6.0 |
| Documents like QAP | Packaging list |
| NABL approved lab test report | Guarantee letter |
| Buyers report | Third-party test report |
| Raw material test report | Material Traceability report |
| Commercial invoice to buyers | The TC like MTC as per EN 10204/3.1B |
Creative Piping Solutions Private Limited is focusing on every procedure to assure quality. AISI SS 316L Bars are subject to surface wash and cleaning to remove all impurities. After that bars and rods are wrapped in thin plastic. Then an outer rope is tied to protect the Stainless Steel Grade 316L Bar and they are packed in a container or wooden box.
