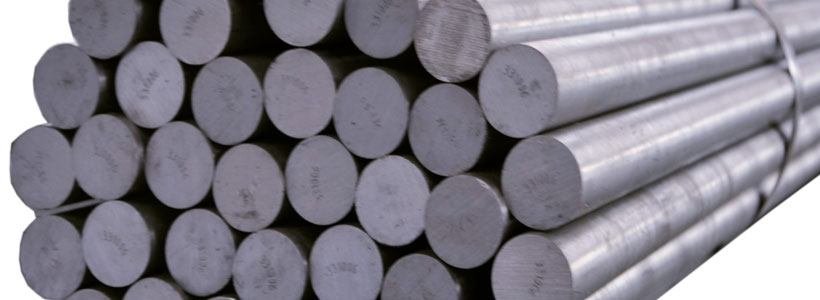

Stainless Steel 304L Round Bar

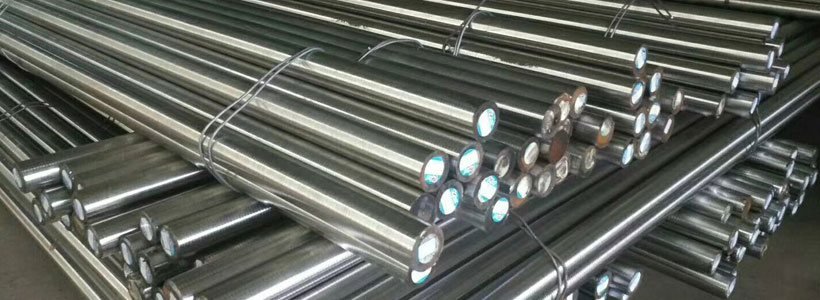

ASTM A276 304L SS Rod

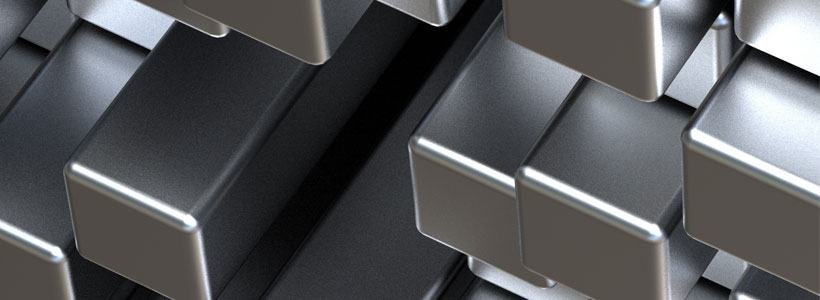

Stainless Steel 304L Bars & Rods
Creative Piping Solutions Private Limited is one of the oldest and most reliable Manufacturers and Stockists of 304L Stainless Steel Bars and Rods. 304L Round and Flat Bars is also known as UNS S30403, is an excellent choice for its high resistance to rust, tensile strength, and high fabrication ability but it has a slightly lower yield than Grade 304. Most commonly used industrial applications are piers, concrete footings, columns, supports, walls, beams, railings, handles, braces, and ornamental work.
Benefits of using Grade 304L for producing 304L SS Round Bar is, Low carbon content eliminates carbon precipitation in the welding process, These UNS S30403 Bars and Rods Can be used in severely corrosive environments, Weld annealing only required in high-stress applications, and it is very similar to Type 304.
We value every customer and pay personalized attention to their requirements, and make sure that we meet their needs as quickly as possible. Being one of the trusted firms as Supplier and Exporter of Hex, Square, Round, Flat, Tee, Angle, Hollow, Forged, Ground, Cold Rolled, Hot Rolled, Rectangular, Bright, Black, True Bars and Rods to different countries namely, Oman, Qatar, Saudi Arabia, Singapore, Bahrain, Kuwait, Iraq, and the United Arab Emirates (UAE), we bring you the best at industry-leading prices.
The ASTM A276 AISI 304L SS Round Bars are used in Hardware, Petro-Chemical Industry, Oil and Gas Industry, Nuclear Industry, Pulp & Paper Industry, Research & Development, Mega Projects, and Defense & Development Industries. In fact wing to the special grade of steel ASTM A479 AISI 304L SS Round Bars are used for all critical applications.
Popular Product Searches on Creative:
Square Bars | Forged Round Bar | Steel Hex Bar | Polish Bar | Bright Round Bars | Black Round Bars
| Specifications | ASTM A276, ASME SA276 / ASTM A479 ASME SA479 |
| Product | 304L Round Bar |
| Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Size | 4mm to 500 mm |
| Length | 1 to 6 Meters, Custom Cut Length |
| From | Round, Square, Rectangle, Hex (A/F), Ingot, Billet, Forging Etc |
| Finish | Black, Rough Turned, Bright Polished, No 4 Finish, Matt Finish, BA Finish |
| Bright Bars Size | OD: 4mm to 100mm |
| Hex Bars Size | 18mm – 57mm (11/16″ to 2-3/4″) |
| Square Bars Size | 18mm – 47mm (11/16″ to 1-3/4″) |
| Flat Bars Size | 1/2” to 10” in thickness range of 2mm to 150mm |
| Angle bars Size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Section | 3.0 to 12.0mm thickness |
| Channel Bars Size | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Hollow Bar Size | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Billet Size | 1/2″ to 495mm Diameter |
| Rectangles Size | 33 x 30mm to 295 x 1066mm |
| Condition | Hardened & tempered, annealed |
| Surface | Cold Drawn, Bright, Sand Blasting Finished, Hot Rolled Pickled, Hairline, Polished |
| Price Terms | Ex-Works, FOB, CFR, CIF, CNF |
| Latest Price | Call +91 7045212326 |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
|---|---|---|---|---|---|---|---|
| SS 304L | 1.4306/1.4307 | S30403 | SUS 304L | 3304S11 | 03Х18Н11 | Z3CN18‐10 | X2CrNi18-9 / X2CrNi19-11 |
| 304L SS Polished Round Bar | Stainless Steel 304L T-Bar |
| WERKSTOFF NR. 1.4306/1.4307 Square Bar | 304L SS Triangle Bar |
| ASME SA276 304L SS Flat Bar | ASME SA479 304L SS Hex Bar |
| 304L SS Hollow Bar | UNS S30403 Round Bar |
| 304L SS Precistion Ground Bar | ASTM A276 304L Threaded Bar |
| 304L SS AISI Rebar | JIS SUS 304L True Bar |
| 304L SS Cold Drawn Bar | 304L SS Hot Rolled Bar |
| ASTM A479 304L SS Rods | DIN 1.4306/1.4307 Half Round Bar |
| EN X2CrNi18-9 / X2CrNi19-11 Polish / Bright Bar | AFNOR Z3CN18‐10 Black Bar |
| BS 3304S11 Angle Bar | GOST 03Х18Н11 Forged Bar |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
|---|---|---|---|---|---|---|---|---|---|
| SS 304L | 0.035 max | 2 max | 1.0 max | 0.045 max | 0.030 max | 18 – 20 | – | 8 – 13 | – |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
| Cold Drawn and Polish | 3.00 – 75.00 | 1/8″ – 3.00″ | h8-h9-h10-h11 |
| Cold Drawn and Ground | 10.00 – 75.00 | 5/6″ – 2.50″ | h8-h9-h10-h11 |
| Peeled and Polished | 40.00 – 150.00 | 1.50″ – 6.00″ | h11, h11-DIN 1013 |
| Peeled and Ground | 20.00 – 50.00 | 3/4″ – 2.00″ | h9-h10-h11 |
| Flat Bar | |||
|---|---|---|---|
| sizes in mm | Size (inch) | Thickness (mm) | Thickness (in Inches) |
| 22 | 7/8 | 17 & 18 | 2/3 – 5/7 |
| 25 | 1 | 5 to 20 | 3/16 – 4/5 |
| 30 | 1-3/16 | 5 to 20 | 3/16 – 4/5 |
| 32 | 1-1/4 | 6 to 20 | 1/4 – 4/5 |
| 35 | 1-3/8 | 5 to 20 | 3/16 – 3/16 |
| 40 | 1-4/7 | 5 to 25 | 3/16 – 1 |
| 45 | 1-7/9 | 5 to 25 | 3/16 – 1 |
| 47 | 1-6/7 | 17,25 & 32 | 2/3, 1 & 1-1/4 |
| 50 | 2 | 5 to 32 | 3/16 – 1-1/4 |
| 55 | 2-1/16 | 5 to 25 | 3/16 – 1 |
| 57 | 2-1/4 | 32 | 1-1/4 |
| 60 | 2-3/8 | 5 to 35 | 3/16 – 1-3/8 |
| 63 | 2-1/2 | 10 to 30 | 3/8 – 1-3/16 |
| 65 | 2-5/9 | 10 to 30 & 35 | 3/8 – 1-3/16, & 1-3/8 |
| 70 | 2-3/4 | 6 to 25 & 40 | 1/4 – 1, & 1-4/7 |
| 75 | 3 | 8 to 25 | 5/16 – 1 |
| 80 | 3-1/8 | 8 to 20 | 5/16 – 4/5 |
| 90 | 3-1/2 | 8 to 20 | 5/16- 4/5 |
| 100 | 4 | 8, 10, 12 | 5/16, 3/8, 1/2 |
| Square bar – metric sizes and weights | ||
|---|---|---|
| Square bar Size | KG’s per Metre | Standard Length (metres) |
| 10 x 10 | 0.81 | 6.0 |
| 12 x 12 | 1.16 | 6.0 |
| 16 x 16 | 2.06 | 6.0 |
| 20 x 20 | 3.22 | 6.0 |
| 25 x 25 | 5.03 | 6.0 |
| 32 x 32 | 8.24 | 6.0 |
| 40 x 40 | 12.8 | 6.0 |
| 50 x 50 | 20.12 | 6.0 |
| Documents like QAP | Packaging list |
| NABL approved lab test report | Guarantee letter |
| Buyers report | Third-party test report |
| Raw material test report | Material Traceability report |
| Commercial invoice to buyers | The TC like MTC as per EN 10204/3.1B |
Creative Piping Solutions Private Limited is focusing on every procedure to assure quality. AISI SS 304L Bars are subject to surface wash and cleaning to remove all impurities. After that bars and rods are wrapped in thin plastic. Then an outer rope is tied to protect the Stainless Steel Grade 304L Bar and they are packed in a container or wooden box.
