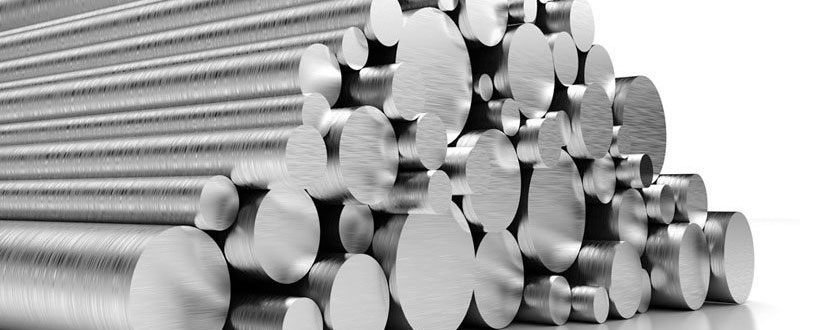

Stainless Steel 304H Round Bar

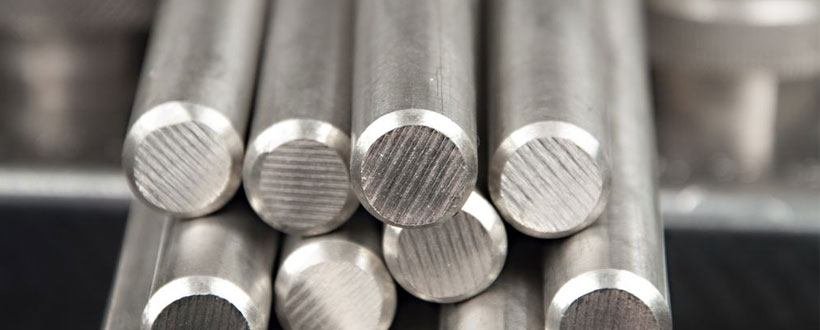

ASTM A276 304H SS Rod

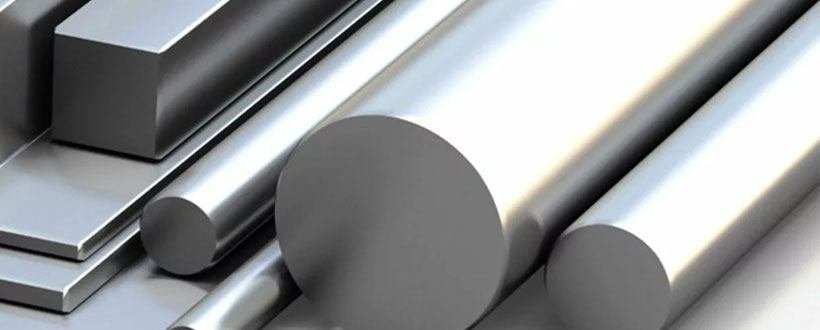

Stainless Steel 304H Bars & Rods
Creative Piping Solutions Private Limited are one of the top ASTM A276 Stainless Steel 304H Round Bars and Rods manufacturers and producing a vast range of sizes from best quality billets and ingots. The range of SS 304 Flat and Square Bars which we offer to our clients are of high quality. We do testing like visual inspection, Ultrasonic test, MPI & PMI of each and every piece which results that we don’t get any quality complaints from our buyers. These AISI 304H Stainless Steel Rods and Bars have been made keeping in mind the quality parameters which have been set by the industry. Because of this reason we are one of the leading Suppliers and Exporters of Square, Round, Flat, Tee, Angle, Hexagonal, Hollow, Bright, Polish, Hot Rolled, Cold Rolled Bars and Rods in different countries like Bahrain, Kuwait, Iraq, Oman, Singapore, Qatar, Saudi Arabia and the United Arab Emirates (UAE).
SS 304H Bars with its higher carbon content finds application at elevated temperatures. The austenitic structure also gives these grades excellent toughness, even down to cryogenic temperatures. 304 Stainless Black Rods display excellent machinability and have outstanding weld-ability features with or without the accumulation of filler alloys. UNS S30409 Rods is austenitic steel, which signifies that a nonmagnetic solid resolution of carbon in iron or ferric carbide is used in offering these alloys as its corrosion-resistant qualities. These DIN 1.4301 Round Bars are produces using advance forging machines to get the exact required dimensions. AISI 304H Round Bars are offered in the customize length and sizes as per the customer’s specifications. SS has magnetic and non-magnetic nature. The corrosive resistivity is one of the best for alternative environments. Also, such grades (304H Bars) are quite resistive towards abrasion even at high temperatures.
Popular Product Searches on Creative:
Square Bars | Forged Round Bar | Steel Hex Bar | Polish Bar | Bright Round Bars | Black Round Bars
| Specifications | ASTM A276, ASME SA276 / ASTM A479 ASME SA479 |
| Product | 304H Round Bar |
| Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Size | 4mm to 500 mm |
| Length | 1 to 6 Meters, Custom Cut Length |
| From | Round, Square, Rectangle, Hex (A/F), Ingot, Billet, Forging Etc |
| Finish | Black, Rough Turned, Bright Polished, No 4 Finish, Matt Finish, BA Finish |
| Bright Bars Size | OD: 4mm to 100mm |
| Hex Bars Size | 18mm – 57mm (11/16″ to 2-3/4″) |
| Square Bars Size | 18mm – 47mm (11/16″ to 1-3/4″) |
| Flat Bars Size | 1/2” to 10” in thickness range of 2mm to 150mm |
| Angle bars Size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Section | 3.0 to 12.0mm thickness |
| Channel Bars Size | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Hollow Bar Size | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Billet Size | 1/2″ to 495mm Diameter |
| Rectangles Size | 33 x 30mm to 295 x 1066mm |
| Condition | Hardened & tempered, annealed |
| Surface | Cold Drawn, Bright, Sand Blasting Finished, Hot Rolled Pickled, Hairline, Polished |
| Price Terms | Ex-Works, FOB, CFR, CIF, CNF |
| Latest Price | Call +91 7045212326 |
| 304H SS Polished Round Bar | Stainless Steel 304H T-Bar |
| WERKSTOFF NR. 1.4301 Square Bar | 304H SS Triangle Bar |
| ASME SA276 304H SS Flat Bar | ASME SA479 304H SS Hex Bar |
| 304H SS Hollow Bar | UNS S30409 Round Bar |
| 304H SS Precistion Ground Bar | ASTM A276 304H Threaded Bar |
| 304H SS AISI Rebar | JIS SUS 304H True Bar |
| 304H SS Cold Drawn Bar | 304H SS Hot Rolled Bar |
| ASTM A479 304H SS Rods | DIN 1.4301 Half Round Bar |
| 304H SS Polish / Bright Bar | 304H SS Black Bar |
| 304H SS Angle Bar | 304H SS Forged Bar |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
|---|---|---|---|---|---|---|---|---|---|
| SS 304H | 0.10 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 18 – 20 | – | 8 – 10.5 | – |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 40 % |
| Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
| Cold Drawn and Polish | 3.00 – 75.00 | 1/8″ – 3.00″ | h8-h9-h10-h11 |
| Cold Drawn and Ground | 10.00 – 75.00 | 5/6″ – 2.50″ | h8-h9-h10-h11 |
| Peeled and Polished | 40.00 – 150.00 | 1.50″ – 6.00″ | h11, h11-DIN 1013 |
| Peeled and Ground | 20.00 – 50.00 | 3/4″ – 2.00″ | h9-h10-h11 |
| Flat Bar | |||
|---|---|---|---|
| sizes in mm | Size (inch) | Thickness (mm) | Thickness (in Inches) |
| 22 | 7/8 | 17 & 18 | 2/3 – 5/7 |
| 25 | 1 | 5 to 20 | 3/16 – 4/5 |
| 30 | 1-3/16 | 5 to 20 | 3/16 – 4/5 |
| 32 | 1-1/4 | 6 to 20 | 1/4 – 4/5 |
| 35 | 1-3/8 | 5 to 20 | 3/16 – 3/16 |
| 40 | 1-4/7 | 5 to 25 | 3/16 – 1 |
| 45 | 1-7/9 | 5 to 25 | 3/16 – 1 |
| 47 | 1-6/7 | 17,25 & 32 | 2/3, 1 & 1-1/4 |
| 50 | 2 | 5 to 32 | 3/16 – 1-1/4 |
| 55 | 2-1/16 | 5 to 25 | 3/16 – 1 |
| 57 | 2-1/4 | 32 | 1-1/4 |
| 60 | 2-3/8 | 5 to 35 | 3/16 – 1-3/8 |
| 63 | 2-1/2 | 10 to 30 | 3/8 – 1-3/16 |
| 65 | 2-5/9 | 10 to 30 & 35 | 3/8 – 1-3/16, & 1-3/8 |
| 70 | 2-3/4 | 6 to 25 & 40 | 1/4 – 1, & 1-4/7 |
| 75 | 3 | 8 to 25 | 5/16 – 1 |
| 80 | 3-1/8 | 8 to 20 | 5/16 – 4/5 |
| 90 | 3-1/2 | 8 to 20 | 5/16- 4/5 |
| 100 | 4 | 8, 10, 12 | 5/16, 3/8, 1/2 |
| Square bar – metric sizes and weights | ||
|---|---|---|
| Square bar Size | KG’s per Metre | Standard Length (metres) |
| 10 x 10 | 0.81 | 6.0 |
| 12 x 12 | 1.16 | 6.0 |
| 16 x 16 | 2.06 | 6.0 |
| 20 x 20 | 3.22 | 6.0 |
| 25 x 25 | 5.03 | 6.0 |
| 32 x 32 | 8.24 | 6.0 |
| 40 x 40 | 12.8 | 6.0 |
| 50 x 50 | 20.12 | 6.0 |
| Documents like QAP | Packaging list |
| NABL approved lab test report | Guarantee letter |
| Buyers report | Third-party test report |
| Raw material test report | Material Traceability report |
| Commercial invoice to buyers | The TC like MTC as per EN 10204/3.1B |
Creative Piping Solutions Private Limited is focusing on every procedure to assure quality. AISI SS 304H Bars are subject to surface wash and cleaning to remove all impurities. After that bars and rods are wrapped in thin plastic. Then an outer rope is tied to protect the Stainless Steel Grade 304H Bar and they are packed in a container or wooden box.
