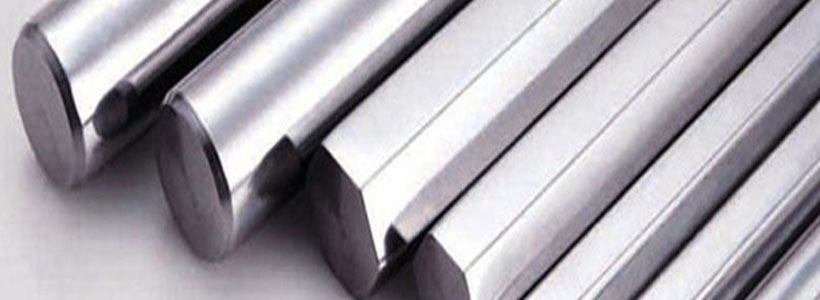

Monel 400 Round Bar

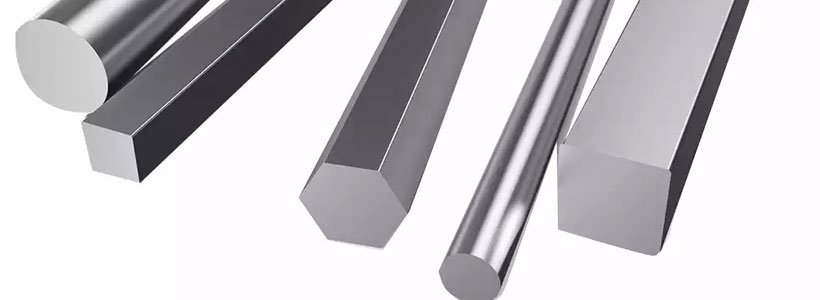

ASTM B164 Monel 400 Rod

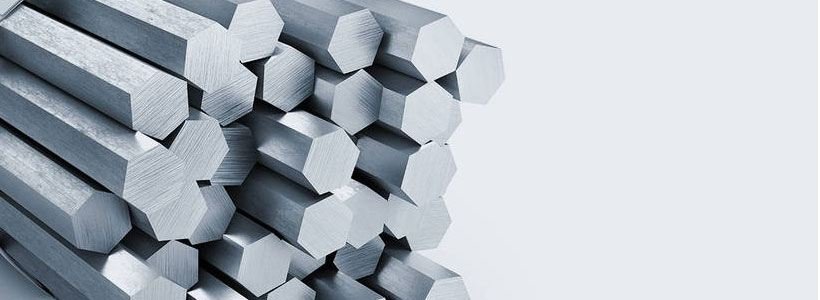

Monel Alloy 400 Bars & Rods
Monel 400 Round Bars is well known for its corrosion-resistant and high strength properties. It works in a wide range of temperatures and is available in multiple forms for a variety of products. Monel 400 is used extensively in piping (for pipe). Resistant to both seawater and steam, its toughness and anti-corrosive properties make it perfect for heavy-duty applications such as transfer (pipe) piping used in oil refineries.
Creative Piping Solutions Private Limited is an industry-leading Monel 400 bright round bar manufacturers and stockists. Grade 400 has outstanding alkaline and corrosion resistance properties, making it widely used in the chemical processing and marine industries. ASTM B164 Monel 400 Flat and Hex Bars is an alloy made from a combination of nickel and copper and is usually formulated in proportions of approximately 67 percent nickel and 33 percent copper. Common applications of nickel alloy 400 include marine fixtures and hardware, shafts and vessels, process piping, water and gas tanks, heat exchangers, electrical components, and refining equipment and petroleum production.
ASME SB 164 Monel Alloy 400 Square Bars (UNS N04400) is in marked contrast to many ferrous materials which are brittle at low temperatures despite their increased strength. Grade 400 / 2.4360 performance characteristics include: High strength over a broad range of temperatures, Outstanding corrosion & alkaline resistance, Magnetic capability, Excellent weldability, Good ductility, Solid thermal conductivity.
We have firmly positioned ourselves as one of the prominent suppliers and exporters of ASME SB164 Monel 400 Bright Bar, Round Bar, Rods, Hex Bar, Hot Rolled Round Bar, Cold Drawn Round Bar, Flat Bar, Forged Bars, Square Bar, Polished Bar, Threaded Bar, Black Bar in Singapore, Bahrain, Qatar, Kuwait, Iraq, Oman, Saudi Arabia and the United Arab Emirates (UAE). we keep Huge Monel 400 Polished Round Bar Stock, available at industry leading prices.
Popular Product Searches on Creative:
Square Bars | Forged Round Bar | Steel Hex Bar | Polish Bar | Bright Round Bars | Black Round Bars
| Specifications | ASTM B164 / ASME SB 164 |
| Product | Monel 400 Round Bar |
| Dimensions | AISI, EN, DIN, ASTM, ASME, JIS, BS |
| Round Bars Size Range | 5 mm To 500 mm |
| Diameter | 0.1mm to 100mm |
| Tolerance | K10, K11, K12, H8, H9, H10, H11, H12, H13K9, or as per clients’ requirements |
| Finish | Black, Rough Turned, Bright Polished, Matt Finish, NO.4 Finish, BA Finish |
| Length | 100mm To 3000mm Long & Above |
| Form | Square, Round, Billet, Hex (A/F), Ingot, Rectangle, Forging Etc. |
| Condition | Hardened & tempered, annealed |
| Surface | Cold Drawn, Bright, Sand Blasting Finished, Hot Rolled Pickled, Hairline, Polished |
| Square Bar Size | 4mm to 100mm |
| Hex Bar Size | 2mm – 100mm A/F |
| Flat Bar Size | Thickness: 2mm – 100mm, Width: 10mm to 500mm |
| Price Terms | Ex-Works, FOB, CFR, CIF, CNF |
| Latest Price | Call +91 7045212326 |
| STANDARD | WERKSTOFF NR. | UNS | JIS | GOST | BS | AFNOR | EN |
|---|---|---|---|---|---|---|---|
| Monel 400 | 2.4360 | N04400 | NW 4400 | МНЖМц 28-2,5-1,5 | NA 13 | NU-30M | NiCu30Fe |
| Monel 400 Polished Round Bar | EN NiCu30Fe Monel T-Bar |
| UNS N04400 Square Bar | Monel 400 Triangle Bar |
| DIN 2.4360 Monel Flat Bar | JIS NW 4400 Monel Hex Bar |
| BS NA 13 Monel Hollow Bar | AISI 400 Monel Alloy Bar |
| ASTM B164 400 Precistion Ground Bar | Monel Alloy 400 Threaded Bar |
| AMS 400 Monel Round Bars | B164 Monel 400 True Bar |
| Monel 400 Cold Drawn Bar | ASME SB164 400 Hot Rolled Bar |
| Cold Finished Monel 400 Bright Bar | Monel Alloy 400 Half Round Bar |
| GOST МНЖМц 28-2,5-1,5 Polish Bar | WERKSTOFF NR. 2.4360 Black Bar |
| AFNOR NU-30M Angle Bar | Monel Alloy 400 Forged Bar |
| Grade | C | Mn | Si | Cu | Fe | Ni | S |
|---|---|---|---|---|---|---|---|
| Monel 400 | 0.30 max | 2.00 max | 0.50 max | 28.00 – 34.00 | 2.50 max | 63.00 min | 0.024 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|
| 8.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80,000 , MPa – 550 | Psi – 35000 , MPa – 240 | 40% |
| Documents like QAP | Packaging list |
| NABL approved lab test report | Guarantee letter |
| Buyers report | Third-party test report |
| Raw material test report | Material Traceability report |
| Commercial invoice to buyers | The TC like MTC as per EN 10204/3.1B |
Creative Piping Solutions Private Limited is focusing on every procedure to assure quality. Monel Alloy 400 Round Bars are subject to surface wash and cleaning to remove all impurities. After that bars and rods are wrapped in thin plastic. Then an outer rope is tied to protect the Monel Round Bars and they are packed in a container or wooden box.
