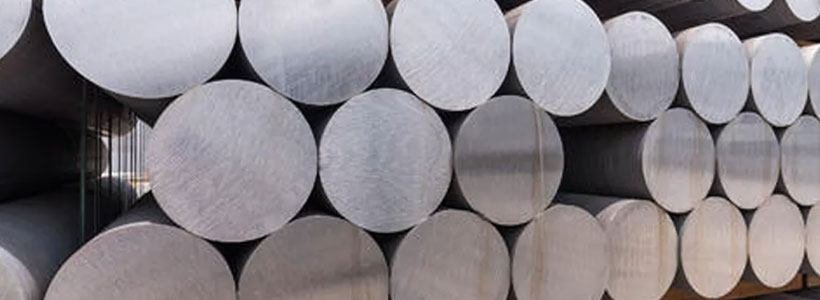

EN9 Round Bar

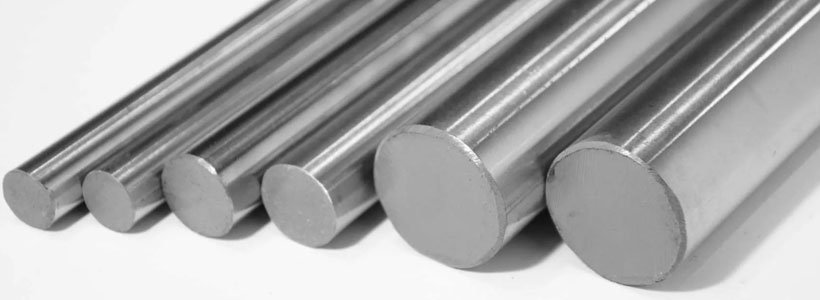

EN9 Rod
070M55 Carbon Steel Round Bar
EN9 Steel is also known as 070M55, available in diameters, squares, flats, and plates with a carbon content 0.50/0.60 this is a medium carbon steel which can develop a tensile strength of 700N/mm 45tsi. In the normalised condition EN9 can be used for gears, sprockets and cams.
Creative Piping Solutions Private Limited is a leading Manufacturers, Stockists, Suppliers, and Exporters of EN9 Steel Round Bars and Rods. In a normalised condition carbon steel grade, en9 round and hex bar is well suitable for use in engineering applications. Generally, the applications where the en9 hexagonal and round bars are used requires characteristics such as a higher tensile strength in addition to superior wear resistance. Typical applications for the en9 bright flat bars include its use in the production of shafts, axes, woodworking, crankshafts, knives, bushes, screws, springs, sprockets, cams, cylinders, sickles, machine tools, drills as well as small gears, keys and hammers. Welding rods for en9 can be produced either in full lengths or they can be cut to meet the requirements of the customers.
We are largely exporting these Flat bars, round bars, square bars, bright bars, hex bars, forged bars, black bars, ground bars, rectangular bars of carbon steel in exact sizes needed by our buyer industries to different countries like UAE, Australia, South Africa, Iran, Iraq, Qatar, Oman, Sri Lanka, Bahrain, Kuwait, Saudi Arabia, Europe.
| Grade | 070M55 / EN-9 |
|---|---|
| Specification | BS 970 1991 |
| Round Bar Size | Diameter: 3-~800mm |
| Square Bar size | 4 to 100mm |
| Flat Bar Size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Hex Bar Size | 2-100mm A/F |
| Rectangles Size | 33 x 30mm to 295 x 1066mm |
| Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Angle Bar Size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Section | 3.0 to 12.0mm thickness |
| Billet Size | 1/2″ to 495mm Diameter |
| Finish | Cold (bright) drawn, centreless ground,smooth turned, Rough Turned, Bright, peeled, hot rolled, hot rolled annealed, slit rolled edge, Polish, Grinding, Centreless Ground & Black |
| Tolerance | K9, K10, K11, K12, H8, H9, H10, H11, H12, H13, or as per clients’ requirements |
| Surface | Polished, Bright, Cold Drawn, Hot Rolled Pickled, Sand Blasting Finished, Hairline |
| Condition | Hardened & Tempered, Annealed |
| Technique | en9 Hot Rolled, Cold Rolled, Cold Drawn, Forged Round Bar, Rods |
| Processing | Bar cutting to 650mm |
| Form | en9 Welding Rod, Round, Round Rod, Rings, Hollow, Rod, T-Bar, Channel Bar, Flat Bar, Square, Blocks, Precision Ground Bar, Triangle, Rectangle, Hex (A/F), Threaded, Ingot, I/H Bar, Half Round Bar, Profiles, Billet, Forging etc. |
| EN9 / 070M55 Bars and Rods Conforms To NACE MR0175/ISO 15156 | |
| Standard | CS EN-9 |
|---|---|
| UNS | – |
| WERKSTOFF NR. | CK55 |
| BS | 070M55 |
| IS | C55 |
| JIS | – |
| EN | EN9 |
| SAE/AISI | 1055 |
| Specification BS 970: 1955 | Chemical Composition | BS 970:1991/1983 Nearest Equivalent | |||||||
| C | Si | Mn | Ni | Cr | Mo | S | P | ||
| % | % | % | % | % | % | % | % | ||
| EN9 | 0.50/0.60 | 0.05/0.35 | 0.50/0.80 | – | – | – | 0.06Max | 0.06Max | 070M55 |
| Heat Treatment | Condition Tons/SQ.inch | Tensile Stress RE MPA | RP0.2 MPA | A min on 5.65so | Impac | Hardness HB | Limited Ruling Section mm | |
| IZODFT.L.b | KCV Joules | |||||||
| Normalise | 45 | 700 | – | 12 | – | – | 201-255 | 63 |
| 39 | 600 | – | 13 | – | – | 170/223 | 250 | |
| R | 45/55 | 700/850 | 385 | 14 | – | – | 201/277 | 100 |
| S | 50/60 | 775/925 | 450 | 14 | – | – | 223/277 | 63 |
| T | 55/65 | 850/1000 | 555 | 12 | – | – | 248/302 | 19 |
| EN-9 / 070M55 Polished Round Bar | EN-9 / 070M55 T-Bar | EN-9 / 070M55 Square Bar |
| EN-9 / 070M55 Triangle Bar | EN-9 / 070M55 Flat Bar | EN-9 / 070M55 Hex Bar |
| EN-9 / 070M55 Precistion Ground Bar | EN-9 / 070M55 Hollow Bar | EN-9 / 070M55 Round Bar |
| EN-9 / 070M55 Threaded Bar | EN-9 / 070M55 Rods | EN-9 / 070M55 Half Round Bar |
| EN9 Rounds Bright Drawn/Turned | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Size (inches) | 1/2 | 9/16 | 5/8 | 3/4 | 7/8 | 1 | 1 1/8 | 1 1/4 | 1 3/8 | 1 1/2 | 1 3/4 | 1 7/8 | 2 | 2 1/8 |
| 2 | 3 | 3 | – | – | – | – | – | – | – | – | – | – | – | |
| EN9 Rounds Hot Rolled | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Size (mm) | 32 | 40 | 45 | 50 | 55 | 65 | 70 | 75 | 80 | 85 | 90 | 95 | 100 | 110 |
| 120 | 125 | 130 | 140 | 150 | 160 | 180 | 190 | 200 | 220 | 280 | – | – | – | |
| Dimensions mm | Dimensions mm | Dimensions mm | Dimensions mm | |||
|---|---|---|---|---|---|---|
| 2500 x 1250 x 6 | – | 2500 x 1250 x 15 | – | 2500 x 1250 x 40 | – | 2500 x 1250 x 80 |
| 3000 x 1500 x 6 | – | 3000 x 1500 x 15 | – | 3000 x 1500 x 40 | – | 3000 x 1500 x 80 |
| 4000 x 2000 x 6 | – | 4000 x 2000 x 15 | – | 4000 x 2000 x 40 | – | 4000 x 2000 x 80 |
| – | – | – | – | – | – | – |
| 2500 x 1250 x 8 | – | 2500 x 1250 x 20 | – | 2500 x 1250 x 50 | – | 2500 x 1250 x 90 |
| 3000 x 1500 x 8 | – | 3000 x 1500 x 20 | – | 3000 x 1500 x 50 | – | 3000 x 1500 x 90 |
| 4000 x 2000 x 8 | – | 4000 x 2000 x 20 | – | 4000 x 2000 x 50 | – | 4000 x 2000 x 90 |
| – | – | – | – | – | – | – |
| 2500 x 1250 x 10 | – | 2500 x 1250 x 25 | – | 2500 x 1250 x 60 | – | 2500 x 1250 x 100 |
| 3000 x 1500 x 10 | – | 3000 x 1500 x 25 | – | 3000 x 1500 x 60 | – | 3000 x 1500 x 100 |
| 4000 x 2000 x 10 | – | 4000 x 2000 x 25 | – | 4000 x 2000 x 60 | – | 4000 x 2000 x 100 |
| – | – | – | – | – | – | – |
| 2500 x 1250 x 12 | – | 2500 x 1250 x 30 | – | 2500 x 1250 x 70 | – | – |
| 3000 x 1500 x 12 | – | 3000 x 1500 x 30 | – | 3000 x 1500 x 70 | – | – |
| 4000 x 2000 x 12 | – | 4000 x 2000 x 30 | – | 4000 x 2000 x 70 | – | – |
| CD | Cold drawn | P | Polished |
|---|---|---|---|
| BD | Bright drawn | SRE | Slit rolled edge |
| CG | Centreless ground | HF | Hot finished |
| CF | Cold finished | HRAP | Hot rolled annealed and pickled |
| P&T | Peeled and turned | RT | Rough turned/peeled |
| ST | Smooth turned | PR | Peeled and reeled |
