En45 Round Bar
En45 Rod

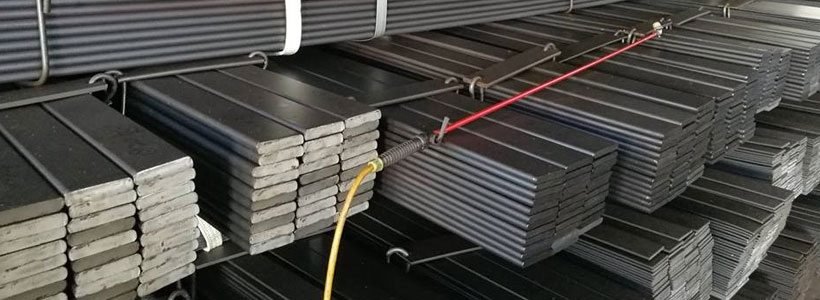

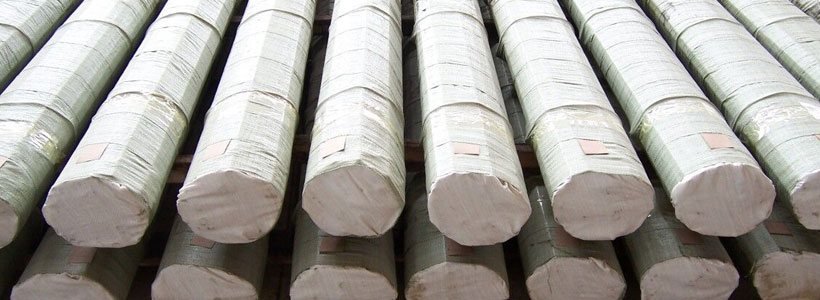

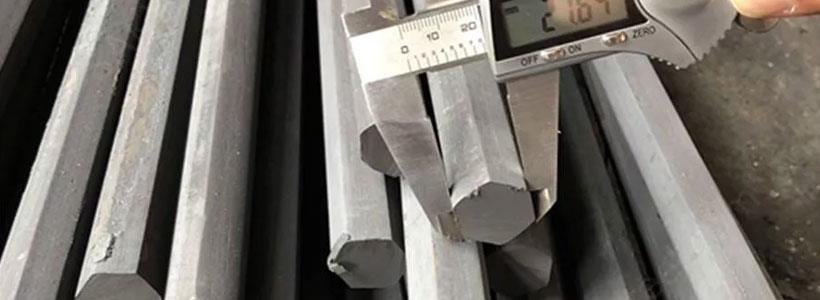

EN45 Spring Steel Round Bar
EN45 Spring Steel is a silico-manganese steel widely used for the manufacturing of Round Bars, Flat Bars, and Rods. Whilst it has been manufactured as both strip and bar in the past, the development of more sophisticated strip steels mean it is no longer generally available in strip form. EN45 is most commonly supplied as black as rolled flat bar which is formed with or without heating and quenched and tempered when the desired shape has been achieved. EN45 Round Bar and Flat Bar is capable of taking up a good hardness and possesses an increased stability in tempering.
Creative Piping Solutions Private Limited is ISO Certified Suppliers and Exporters of En45 Bright Bar, En45 Round Bar, En45 Flat Bar, En45 Hexagon Bar, En45 Square Bar, En45 Rectangular Bar, En45 Rod, En45 Hex Bar, En45 Mild Steel Bar, Spring Steel En 45 Bright Bar, En45 Black Bar, En45 Forged Bar, En45 Ground Bar, En45 Hollow Bar in varied gulf countries, namely Bahrain, Kuwait, Iraq, Oman, Qatar, Saudi Arabia and the United Arab Emirates (UAE), etc.
| Grade | EN-45 |
|---|---|
| Specification | BS970 1.0904 55Si7 55S6 55Si2Mn ASTM 9255 |
| Round Bar Size | Diameter: 3-~800mm |
| Square Bar size | 4 to 100mm |
| Flat Bar Size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Hex Bar Size | 2-100mm A/F |
| Rectangles Size | 33 x 30mm to 295 x 1066mm |
| Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Angle Bar Size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Section | 3.0 to 12.0mm thickness |
| Billet Size | 1/2″ to 495mm Diameter |
| Finish | Cold (bright) drawn, centreless ground,smooth turned, Rough Turned, Bright, peeled, hot rolled, hot rolled annealed, slit rolled edge, Polish, Grinding, Centreless Ground & Black |
| Tolerance | K9, K10, K11, K12, H8, H9, H10, H11, H12, H13, or as per clients’ requirements |
| Surface | Polished, Bright, Cold Drawn, Hot Rolled Pickled, Sand Blasting Finished, Hairline |
| Condition | Hardened & Tempered, Annealed |
| Technique | en45 Hot Rolled, Cold Rolled, Cold Drawn, Forged Round Bar, Rods |
| Processing | Bar cutting to 650mm |
| Form | en45 Welding Rod, Round, Round Rod, Rings, Hollow, Rod, T-Bar, Channel Bar, Flat Bar, Square, Blocks, Precision Ground Bar, Triangle, Rectangle, Hex (A/F), Threaded, Ingot, I/H Bar, Half Round Bar, Profiles, Billet, Forging etc. |
| En45 Spring Steel Bars and Rods Conforms To NACE MR0175/ISO 15156 | |
DIN 1.5026, AFNOR 55S7, BS EN45 A, BS 250A53, BS 250A58, BS 250A61, AISI 9555, SAE 9555, EN 56Si7, EN 1.5026, GOST 55S2, GB 55Si2Mn.
| Element | En42J |
|---|---|
| C | 0.75 – 0.90% |
| Mn | 0.50 – 0.90% |
| Si | 0/1 – 0.35 |
| S | 0.04% Max |
| P | 0.04% Max |
| ULTIMATE TENSILE STRENGTH, S. (MPA) | 621 |
|---|---|
| Modulus of elasticity, E (Gpa) | 204 |
| Fatigue strength coefficient, of (Mpa) | 948 |
| Fatigue strength exponent, b | -0.092 |
| Fatigue ductility coeffient ,ef | 0.26 |
| Fatigue ductility exponent,c | -0.445 |
| EN-45 Spring Steel Polished Round Bar | EN-45 Spring Steel T-Bar |
| EN-45 Spring Steel Square Bar | EN-45 Spring Steel Triangle Bar |
| EN-45 Spring Steel Flat Bar | EN-45 Spring Steel Hex Bar |
| EN-45 Spring Steel Hollow Bar | EN-45 Spring Steel Round Bar |
| EN-45 Spring Steel Precistion Ground Bar | EN-45 Spring Steel Threaded Bar |
| EN-45 Spring Steel Rods | EN-45 Spring Steel Half Round Bar |
| Imperial Sizes available (ins) | Metric sizes available (mm) | ||
| 1.1/2 | 3/16 | 40 | 4 |
| 1.1/4 | 3/8 | 50 | 5 |
| 1.1/2 | 1/4 | 60 | 6 |
| 1.1/2 | 3/8 | 70 | 6 |
| 1.3/4 | 1/4 | 70 | 7 |
| 2 | 1/4 | 75 | 6 |
| 2 | 5/16 | 70 | 8 |
| 2.1/2 | 3/16 | 60 | 9 |
| 2.1/4 | 1/4 | 60 | 10 |
| 3 | 5/16 | 80 | 10 |
| 5 | 3/4 | 80 | 15 |
| CD | Cold drawn | P | Polished |
|---|---|---|---|
| BD | Bright drawn | SRE | Slit rolled edge |
| CG | Centreless ground | HF | Hot finished |
| CF | Cold finished | HRAP | Hot rolled annealed and pickled |
| P&T | Peeled and turned | RT | Rough turned/peeled |
| ST | Smooth turned | PR | Peeled and reeled |
