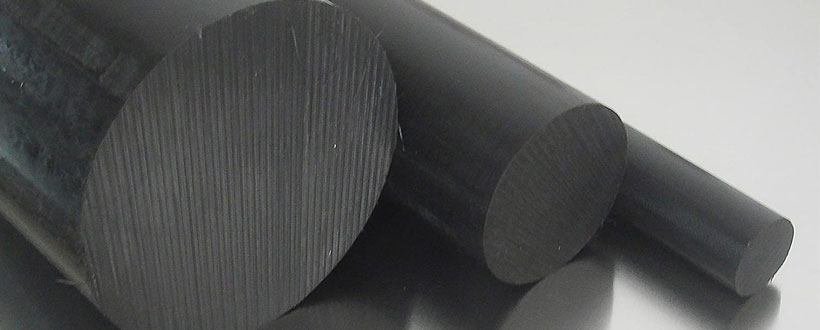

SAE 1035 Round Bar

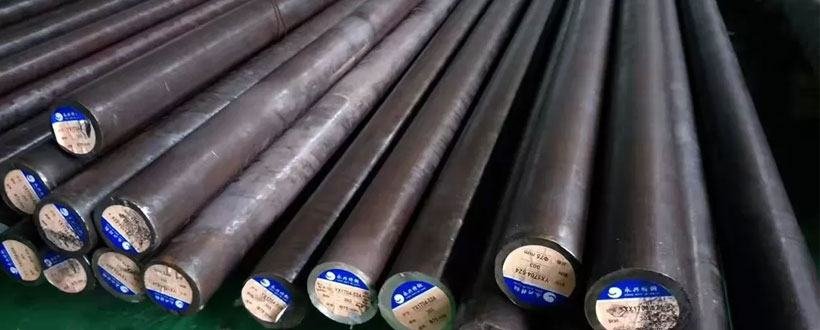

1035 Carbon Steel Rod

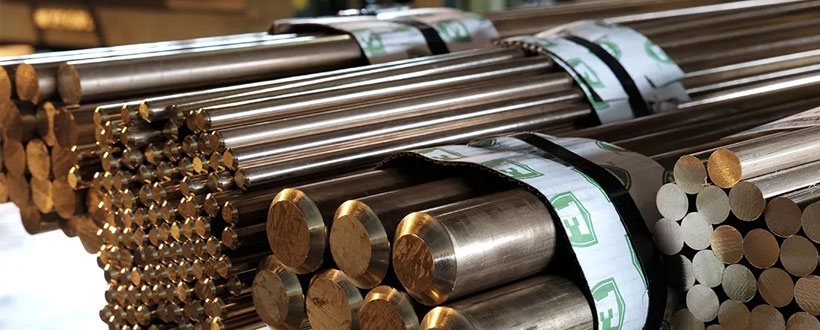

AISI 1035 Low & High Carbon Steel Bars & Rods
AISI 1035 Steel is a relatively low cost, medium carbon steel, and medium strength and is commonly used in a wide variety of general-purpose applications. SAE 1035 bars and rods are higher in hardness and strength as compared to low carbon steel and are often used for small parts of moderate strength such as nuts, bolts, studs, and parts that are headed or upset. The ASTM 1035 flat and square bar is to be rolled from properly identified heats of strand cast or from mold cast steel. The identification of the Carbon Steel Grade AISI 1035 bar is to be done with any one of the following processes i.e. a basic electric furnace process, oxygen process, or an open hearth process. For instance, a tensile test, deformation test, as well as a bend test will be conducted on the carbon steel ASTM specified C1035 round and hex bar.
Creative Piping Solutions Private Limited is manufacturers and stockists of a wide range of round bars and rods as per the needs of our buyers. These bars and rods are made in varied sizes and shapes so that we can fulfill all the needs and desires of clients. We produce our products keeping in mind the quality parameters and requirements set by the industry as well as national and international standards. These 1035 round bars are known best for their excellent quality and features. we keep huge stock to meet the urgent demands of our domestic and overseas customers. We welcome any large or small quantity orders and already supplied SAE 1035 Round Bars in Singapore, Iraq, Oman, Bahrain, Kuwait, Qatar, Saudi Arabia and the United Arab Emirates (UAE) at reasonable prices.
| Specifications | SAE 1035, AISI 1035 |
| Product | 1035 Round Bar |
| Dimensions | AISI, EN, DIN, ASTM, ASME, JIS, BS |
| Round Bars Size | 3.0 – 50.8 mm, Over 50.8 – 300mm |
| Rectangular Bars Size | 6.35 x 12.7mm,6.35 x 25.4mm,12.7 x 25.4mm |
| Hex Bars Size | AF5.8mm–17mm |
| Square Bars Size | AF.2mm – 14mm, AF6.35mm, 9.5mm, 12.7mm, 15.98mm, 19.0mm, 25.4mm |
| Flat Bars Size | 1/2” to 10” in thickness range of 2mm to 150mm |
| Finish | Bright, Polish & Black |
| Length | 1 to 6 Meters, Custom Cut Lengths |
| Form | Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging Etc |
| Condition | Hardened & tempered, annealed |
| Surface | Cold Drawn, Bright, Sand Blasting Finished, Hot Rolled Pickled, Hairline, Polished |
| Price Terms | Ex-Works, FOB, CFR, CIF, CNF |
| Latest Price | Call +91 7045212326 |
EN Name C35 (1.0501)
EN Number 1.0501
DIN C35, CM35
BS 970 070M36
UNI C35
JIS S35C
| Carbon Steel 1035 Polished Round Bar | SAE 1035 Carbon Steel T-Bar |
| AISI 1035 Carbon Steel Square Bar | SAE 1035 Carbon Steel Triangle Bar |
| 1035 High Carbon Steel Flat Bar | 1035 High Strength Carbon Steel Hex Bar |
| SAE 1035 Low Carbon Steel Hollow Bar | 1035 Low Temperature Carbon Steel Round Bar |
| 1035 Low Temp. CS Precistion Ground Bar | SAE 1035 Medium Carbon Steel Threaded Bar |
| Carbon Steel 1035 Round Bars | 1035 High Carbon Steel True Bar |
| Low Carbon 1035 Steel Cold Drawn Bar | 1035 Carbon Structural Steel Hot Rolled Bar |
| 1035 Cold Finished Carbon Steel Rods | 1035 Cold Finished Carbon Steel Half Round Bar |
| SAE 1035 Carbon Steel Polish / Bright Bar | SAE 1035 Mild Steel Black Bar |
| SAE 1035 Carbon Steel Solid Round Bar | SAE 1035 Carbon Steel Dowel Bars |
| SAE 1035 Carbon Steel Deformed Bars | SAE 1035 LTCS Round Bars and Rods |
| SAE 1035 Carbon Steel Angle Bar | SAE 1035 Medium Carbon Steel Forged Bar |
| Element | Content (%) |
|---|---|
| Carbon, C | 0.310 – 0.380 % |
| Iron, Fe | 98.63 – 99.09 % |
| Manganese, Mn | 0.60 – 0.90 % |
| Phosphorous, P | 0.040 % |
| Sulfur, S | 0.050 % |
| Properties | Metric | Imperial |
|---|---|---|
| Tensile strength, ultimate | 585 MPa | 84800 psi |
| Tensile strength, yield | 370 MPa | 53700 psi |
| Modulus of elasticity | 190-210 GPa | 29700-30458 ksi |
| Bulk modulus (typical for steel) | 140 GPa | 20300 ksi |
| Shear modulus (typical for steel) | 80 GPa | 11600 ksi |
| Poissons ratio | 0.27-0.30 | 0.27-0.30 |
| Elongation at break (in 50 mm) | 30% | 30% |
| Reduction of area | 53% | 53% |
| Hardness, Brinell | 183 | 183 |
| Hardness, Knoop (converted from Brinell hardness) | 204 | 204 |
| Hardness, Rockwell B (converted from Brinell hardness) | 89 | 89 |
| Hardness, Vickers (converted from Brinell hardness) | 192 | 192 |
| Machinability (based on AISI 1212 steel. as 100 machinability) | 65 | 65 |
| 16mm | 18mm | 20mm | 22mm | 23.5mm | 24mm | 25mm | 26mm | 27mm | 28mm | 30mm | 32mm | 34mm |
| 35mm | 36mm | 37mm | 37mm | 40mm | 42mm | 45mm | 46.5mm | 47mm | 50mm | 51mm | 53mm | 56mm |
| 60mm | 63mm | 65mm | 70mm | 75mm | 78mm | 85mm | 90mm | 95mm | 105mm | 110mm | 120mm | 130mm |
| Documents like QAP | Packaging list |
| NABL approved lab test report | Guarantee letter |
| Buyers report | Third-party test report |
| Raw material test report | Material Traceability report |
| Commercial invoice to buyers | The TC like MTC as per EN 10204/3.1B |
Creative Piping Solutions Private Limited is focusing on every procedure to assure quality. SAE 1035 CS Round Bars are subject to surface wash and cleaning to remove all impurities. After that bars and rods are wrapped in thin plastic. Then an outer rope is tied to protect the SAE 1035 Round Bars and they are packed in a container or wooden box.
