SAE 1030 Round Bar

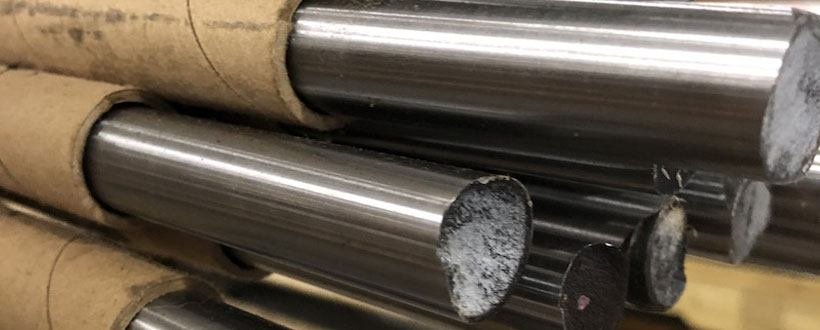

1030 Carbon Steel Rod

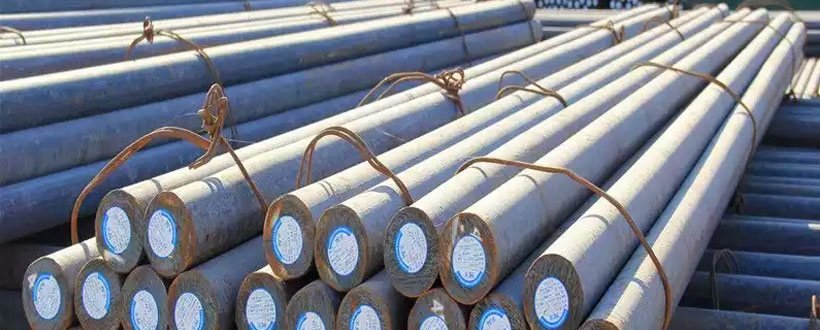

AISI 1030 Low & High Carbon Steel Bars & Rods
The SAE 1030 steel is high carbon steel and has moderate hardness and strength in the as-rolled condition. It can be strengthened and hardened by cold work. It also has fair ductility, machinability, and good weldability. 1030 is used by all industry sectors for applications requiring higher strength than 1020 can provide or often for applications making use of its centreless ground finish. Application of Grade 1030: Automobile Industry, Pharmaceutical/Chemical Industry, Construction, Oil & Gas Industry.
AISI 1030 is a medium tensile low hardenability carbon steel generally supplied in the turned or cold drawn and polished, or centreless ground condition, with a typical tensile strength range 500 – 850 Mpa, and Brinell hardness range 150 – 245.
Creative Piping Solutions Private Limited serve high-quality Carbon Steel 1030 Square and Flat Bars and reliable service to our customers. Personal attention, good quality, promptness in delivery, accuracy in measurement, and competitive market price are few of our assurance before-hand. This approach has helped us in winning the trust of innumerable satisfied customers which spread all across the World.
We are largest Suppliers and Exporters of Hexagon Bar, Hot Rolled Round Bar, Black Bar, True Bar, Polished Bar, Cold Drawn Bar, Rectangular Bar, Forged Bar, Cold Finished Bars, Round Bar, Rods, Bright Bar, Hex Bar, Square Bar, Flat Bar, Forged Bars, Threaded Bar, T Bars (Tee), Ground Bar, Angle Bar, Dowel Bars, Deformed Bars, Hollow Bar in Iraq, Oman, Bahrain, Kuwait, Qatar, Singapore, Saudi Arabia and the United Arab Emirates (UAE) at industrial leading prices.
| Specifications | SAE 1030, AISI 1030 |
| Product | 1030 Round Bar |
| Dimensions | AISI, EN, DIN, ASTM, ASME, JIS, BS |
| Round Bars Size | 3.0 – 50.8 mm, Over 50.8 – 300mm |
| Rectangular Bars Size | 6.35 x 12.7mm,6.35 x 25.4mm,12.7 x 25.4mm |
| Hex Bars Size | AF5.8mm–17mm |
| Square Bars Size | AF.2mm – 14mm, AF6.35mm, 9.5mm, 12.7mm, 15.98mm, 19.0mm, 25.4mm |
| Flat Bars Size | 1/2” to 10” in thickness range of 2mm to 150mm |
| Finish | Bright, Polish & Black |
| Length | 1 to 6 Meters, Custom Cut Lengths |
| Form | Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging Etc |
| Condition | Hardened & tempered, annealed |
| Surface | Cold Drawn, Bright, Sand Blasting Finished, Hot Rolled Pickled, Hairline, Polished |
| Price Terms | Ex-Works, FOB, CFR, CIF, CNF |
| Latest Price | Call +91 7045212326 |
| Related Specifications | |
|---|---|
| Australia | AS 1443 – 1994 M1030 |
| Germany | W.Nr 1.1178 CK30 W.Nr 1.0528 C30 |
| Great Britain | BS970 – 1955 EN5, 6, 6a BS970 – Part 3 – 1991 080M30 |
| Japan | JIS G 4051 S30C |
| USA | AISI C1030 ASTM A29/A29M – 91 1030 UNS G 10300 SAE 1030 |
EN Name C35 (1.0501)
EN Number 1.0501
DIN C30, CM30
BS 970 070M36
UNI C30
JIS S30C
| Carbon Steel 1030 Polished Round Bar | SAE 1030 Carbon Steel T-Bar |
| AISI 1030 Carbon Steel Square Bar | SAE 1030 Carbon Steel Triangle Bar |
| 1030 High Carbon Steel Flat Bar | 1030 High Strength Carbon Steel Hex Bar |
| SAE 1030 Low Carbon Steel Hollow Bar | 1030 Low Temperature Carbon Steel Round Bar |
| 1030 Low Temp. CS Precistion Ground Bar | SAE 1030 Medium Carbon Steel Threaded Bar |
| Carbon Steel 1030 Round Bars | 1030 High Carbon Steel True Bar |
| Low Carbon 1030 Steel Cold Drawn Bar | 1030 Carbon Structural Steel Hot Rolled Bar |
| 1030 Cold Finished Carbon Steel Rods | 1030 Cold Finished Carbon Steel Half Round Bar |
| SAE 1030 Carbon Steel Polish / Bright Bar | SAE 1030 Mild Steel Black Bar |
| SAE 1030 Carbon Steel Solid Round Bar | SAE 1030 Carbon Steel Dowel Bars |
| SAE 1030 Carbon Steel Deformed Bars | SAE 1030 LTCS Round Bars and Rods |
| SAE 1030 Carbon Steel Angle Bar | SAE 1030 Medium Carbon Steel Forged Bar |
| Element | Content |
|---|---|
| Carbon, C | 0.270 – 0.340 % |
| Iron, Fe | 98.63 – 99.09 % |
| Manganese, Mn | 0.60 – 0.90 % |
| Phosphorous, P | 0.040 % |
| Sulfur, S | 0.050 % |
| Tensile strength (psi) | 68,000 – 78,000 |
| Yield strength (psi) | 38,000 – 48,000 |
| Elongation in 2” (%) | 15 – 25 |
| Reduction of area (%) | 35 – 45 |
| Brinell Hardness (BHN) | 140 – 170 |
| 16mm | 18mm | 20mm | 22mm | 23.5mm | 24mm | 25mm | 26mm | 27mm | 28mm | 30mm | 32mm | 34mm |
| 35mm | 36mm | 37mm | 37mm | 40mm | 42mm | 45mm | 46.5mm | 47mm | 50mm | 51mm | 53mm | 56mm |
| 60mm | 63mm | 65mm | 70mm | 75mm | 78mm | 85mm | 90mm | 95mm | 105mm | 110mm | 120mm | 130mm |
| Documents like QAP | Packaging list |
| NABL approved lab test report | Guarantee letter |
| Buyers report | Third-party test report |
| Raw material test report | Material Traceability report |
| Commercial invoice to buyers | The TC like MTC as per EN 10204/3.1B |
Creative Piping Solutions Private Limited is focusing on every procedure to assure quality. SAE 1030 CS Round Bars are subject to surface wash and cleaning to remove all impurities. After that bars and rods are wrapped in thin plastic. Then an outer rope is tied to protect the SAE 1030 Round Bars and they are packed in a container or wooden box.
